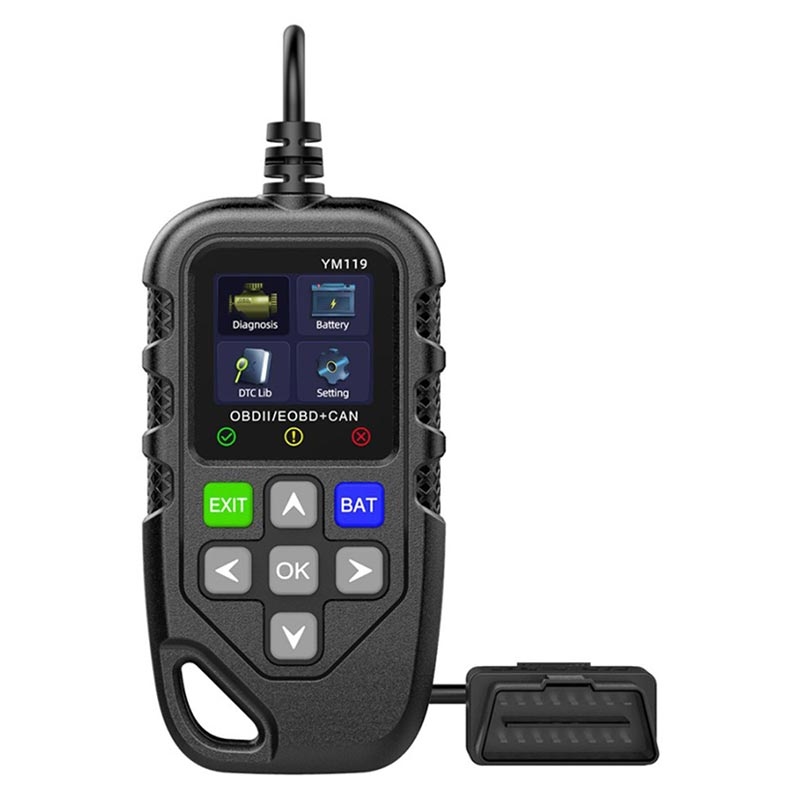

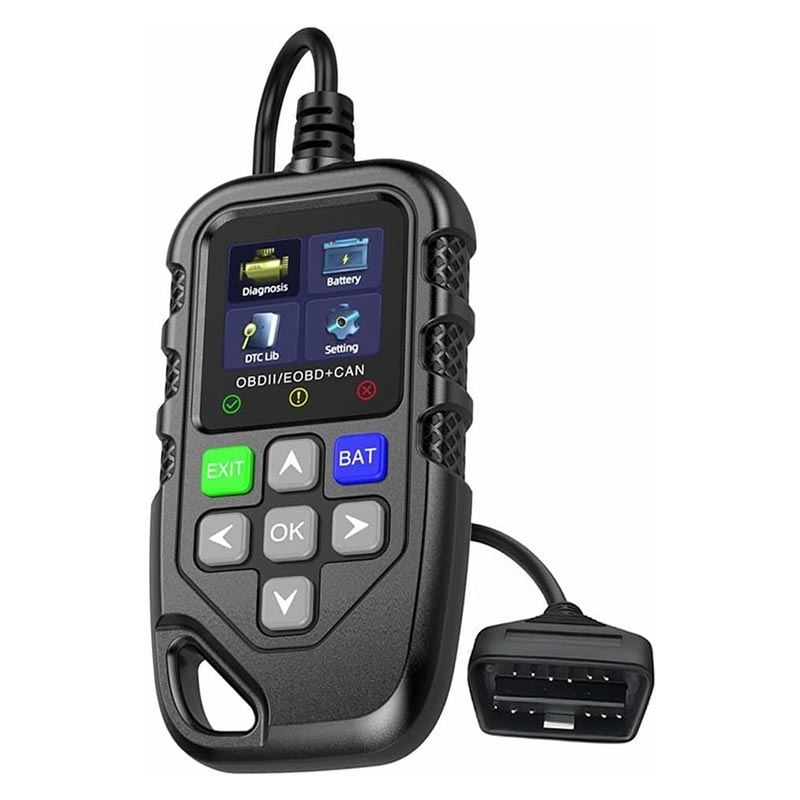

YM119 OBD2 Scanner - Handheld Engine Fault Code Reader with Battery Test & Live Data Stream
The YM119 is a plug-and-play OBD2 scanner built for straightforward, no-frills vehicle diagnostics. With a clear color LCD display and no app or extra equipment required, it lets you read engine fault codes, monitor live data, and check battery health right from the driver's seat.
Comprehensive OBD2 Diagnostics

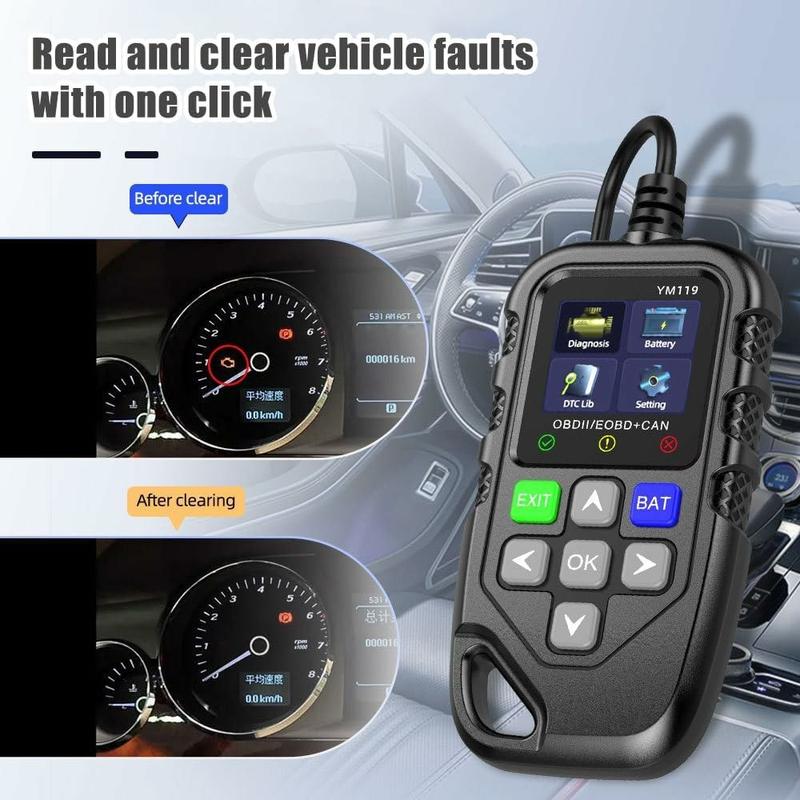

Read and clear engine fault codes, check I/M readiness status, view freeze frame data, and access general vehicle information - all standard diagnostic functions for OBDII-compliant vehicles, giving you a clear picture of what's triggering your check engine light.
Built-In Battery Test
Quickly check your car battery's voltage and charging status without needing separate equipment. An exclusive battery life assessment feature helps you monitor battery health over time, so you can catch issues before they leave you stranded.

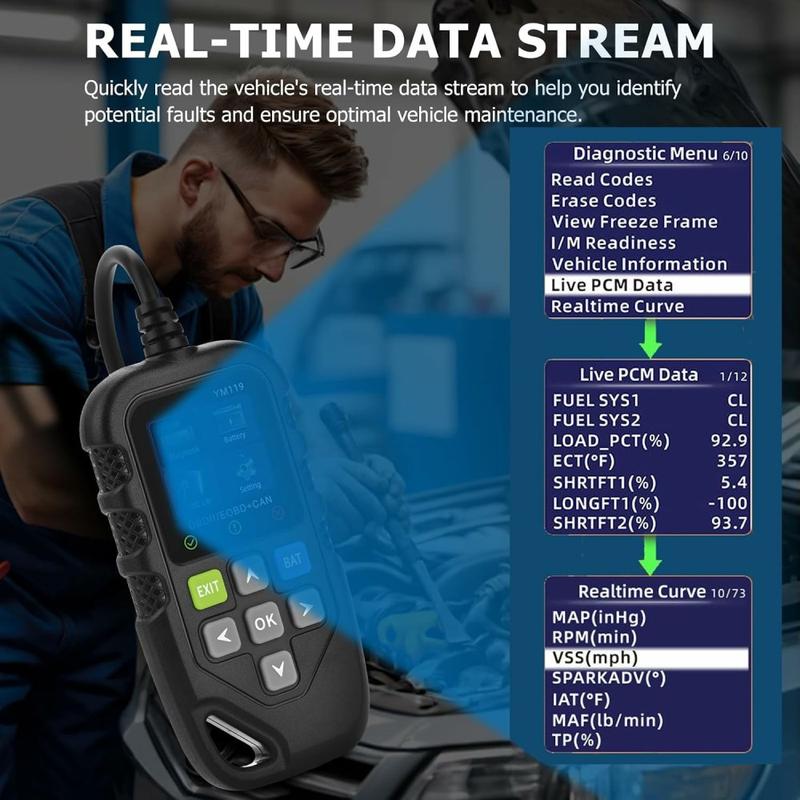

Real-Time Data Stream with Graphical Display
Monitor live PCM data including engine RPM, vehicle speed, coolant temperature, fuel system status, throttle position, and oxygen sensor readings, with a graphical curve display that makes it easier to spot abnormal patterns while troubleshooting.
Wide Vehicle Compatibility
The YM119 works with most OBDII-compliant vehicles, including sedans, SUVs, minivans, and light trucks, with specific compatibility for Jetta VI 2011-2018 and later models.

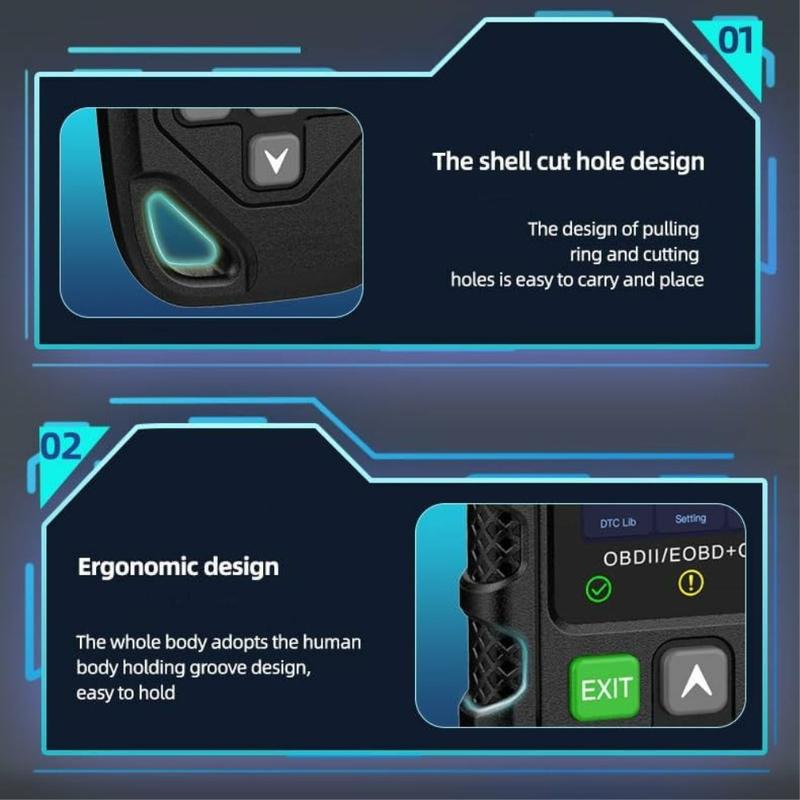

Portable, Plug-and-Play Design

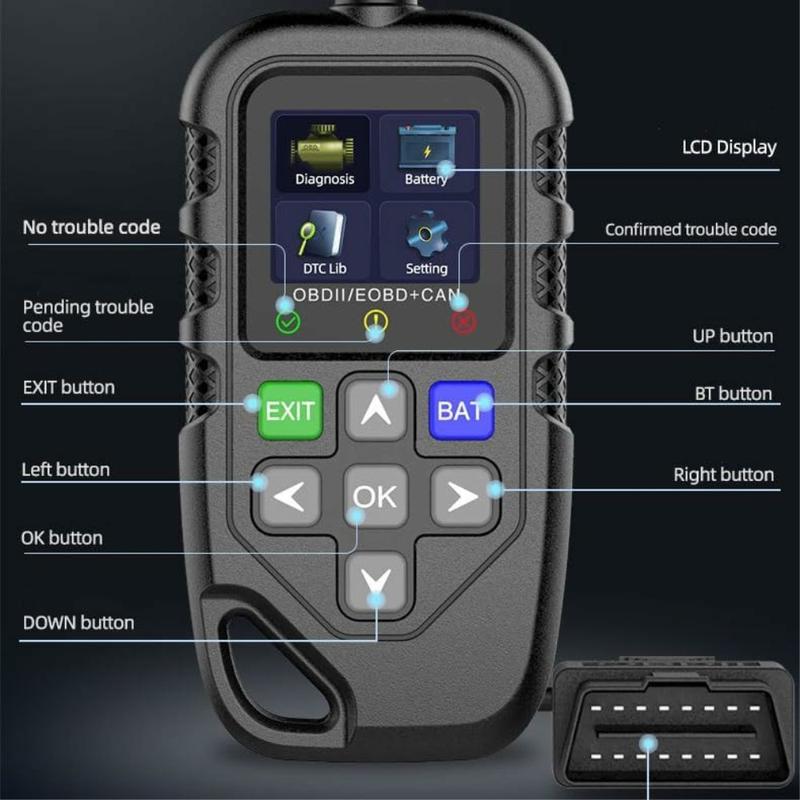

Featuring a clear color LCD display, an intuitive menu layout, and an ergonomic grip, the YM119 offers true plug-and-play operation - no battery, charging, or app setup needed for quick, on-the-spot diagnostics.
Key Features
- Read and clear engine fault codes
- Built-in battery voltage test and life assessment
- Live PCM data stream with graphical curve display
- I/M readiness, freeze frame, and vehicle information access
- O2 sensor test, on-board monitor test, component test
- DTC code search and Mode 6 test
- Plug-and-play, no app or battery required
- Color LCD display with ergonomic handheld design
Specifications
- Model: YM119
- Display: Color LCD Display
- Connector: 16-pin OBD-II

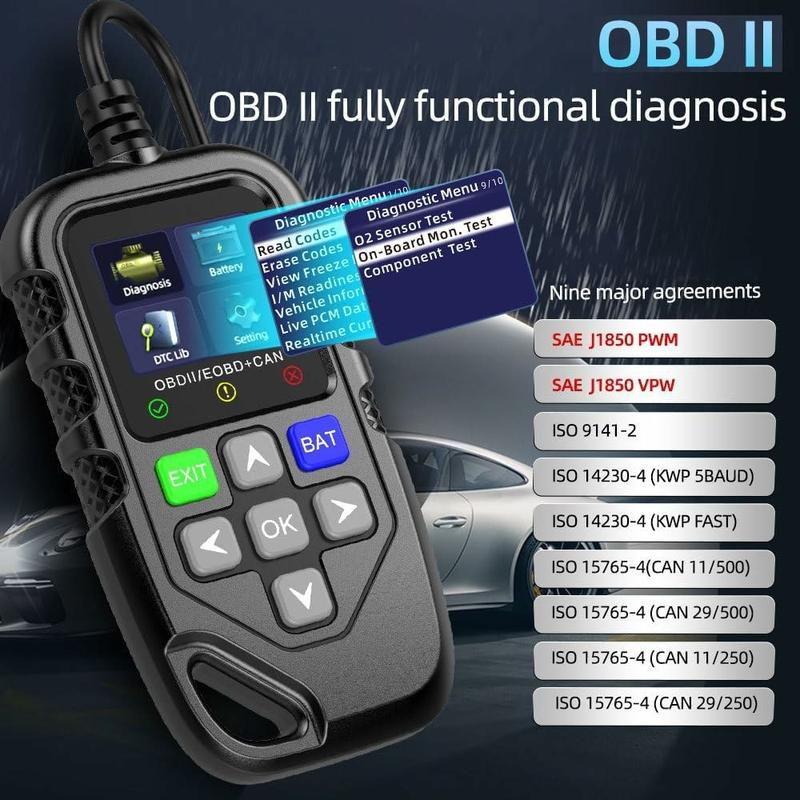

- Supported Protocols: SAE J1850 PWM, SAE J1850 VPW, ISO 9141-2, ISO 14230-4 (KWP 5BAUD), ISO 14230-4 (KWP FAST), ISO 15765-4 (CAN 11/500), ISO 15765-4 (CAN 29/500), ISO 15765-4 (CAN 11/250), ISO 15765-4 (CAN 29/250)

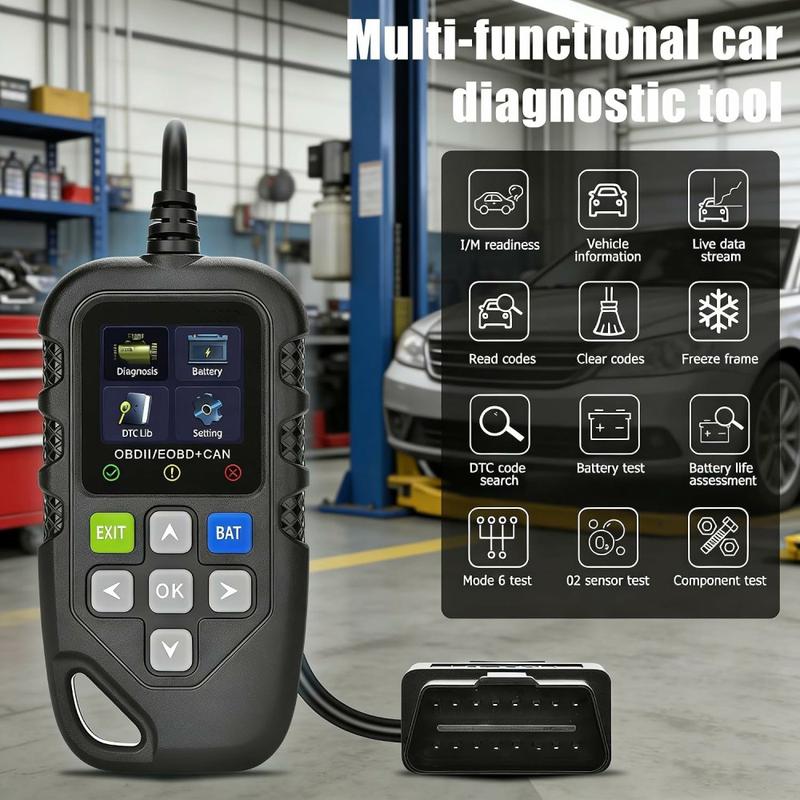

- Diagnostic Functions: Read Codes, Erase Codes, View Freeze Frame, I/M Readiness, Vehicle Information, Live PCM Data, Realtime Curve, O2 Sensor Test, On-Board Monitor Test, Component Test, Battery Test, Battery Life Assessment, DTC Code Search, Mode 6 Test
- Compatible Models: Jetta VI 2011-2018 and later, compatible with most OBDII sedans, SUVs, minivans, and light trucks
What's in the Box
- 1 x Car Diagnostic Tool
- 1 x English User Manual
Packing: Euroblister
EAN: 5714122666642
