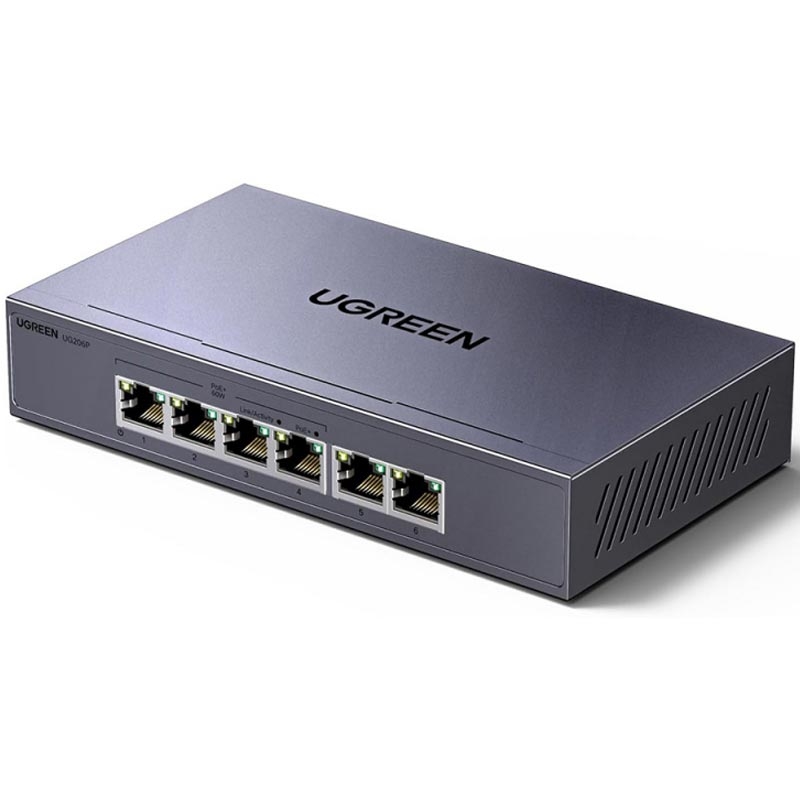

Ugreen 6-Port Gigabit PoE Ethernet Switch with 4 PoE Ports, VLAN and 250m Extend Mode
Build a fast and stable wired network with the Ugreen Gigabit PoE Ethernet switch. It features four Gigabit PoE ports, two additional Gigabit uplink ports, a 60W total PoE budget and VLAN support, making it suitable for IP cameras, access points, VoIP phones and other compatible network devices.

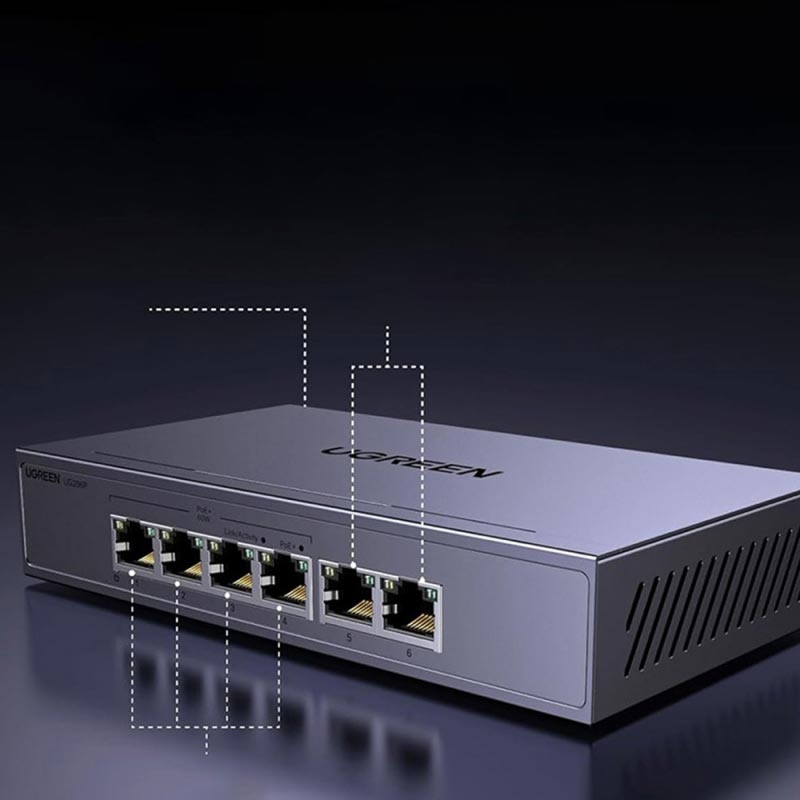

4-Port Gigabit PoE Power Delivery
Ports 1-4 support PoE and can deliver up to 30W per port, with a maximum total PoE budget of 60W. The switch automatically distributes power to compatible connected devices through the Ethernet cable.

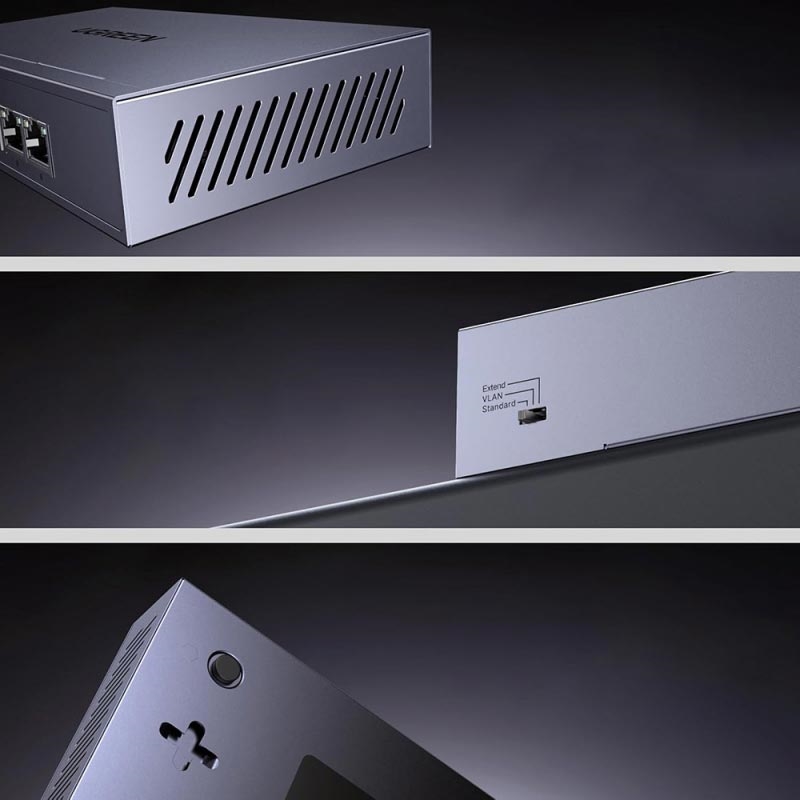

Extended Transmission up to 250m
Extend Mode allows PoE connections to reach distances of up to 250m by reducing transfer speed for more stable long-distance operation.

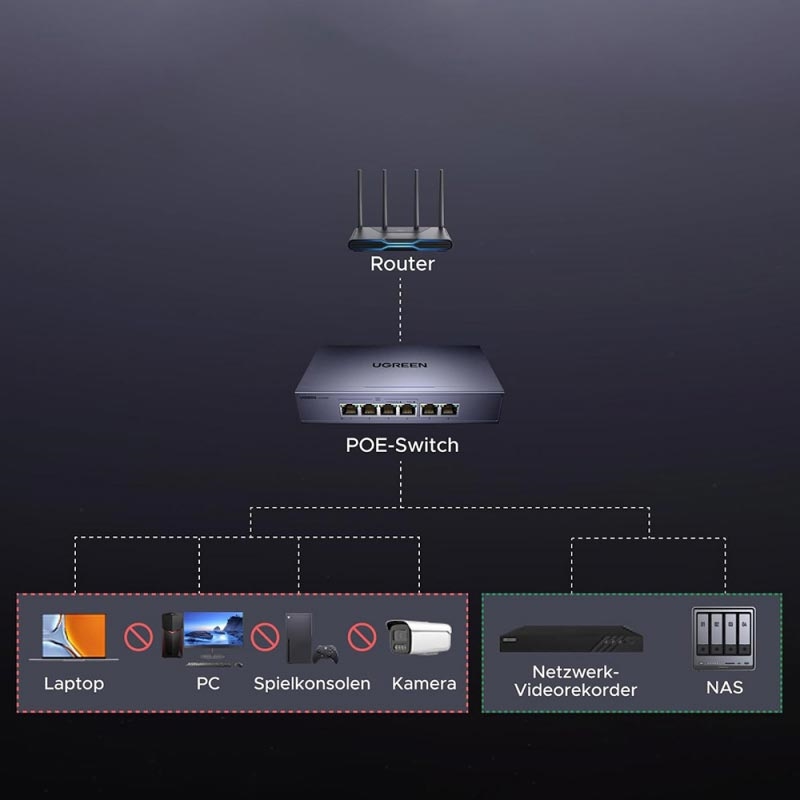

VLAN for Improved Network Isolation
With VLAN mode enabled, PoE ports 1-4 are isolated from one another and can communicate only with ports 5 and 6, helping improve network organisation and security.
Key Features
- 6 x Gigabit RJ45 ports
- 4 x Gigabit PoE ports
- Up to 30W power per PoE port
- 60W total PoE power budget
- Supports IEEE 802.3af and 802.3at
- Extend Mode up to 250m
- VLAN isolation for ports 1-4
- Switching capacity up to 12Gbps
- 9KB Jumbo Frame support
- 6kV surge protection
- Metal housing for durability
- LED indicators for power, activity and PoE status
Specifications
- Brand: Ugreen
- Product type: Gigabit PoE Ethernet switch
- Material: Metal
- Total ports: 6 x RJ45
- PoE ports: 4
- Ethernet speed: 10/100/1000Mbps
- PoE output: Up to 30W per port
- Total PoE budget: 60W
- Maximum output power: 65W
- Network standards: IEEE 802.3/u/x/ab/af/at
- Switching capacity: 12Gbps
- MAC address table: 2K
- Jumbo frame: 9KB
- Transfer method: Store and Forward
- Extend Mode distance: Up to 250m
- Power input: AC 100-240V, 50/60Hz
- Operating temperature: 0 C to 40 C
- Storage temperature: -40 C to 70 C
- Operating humidity: 10%-90% RH, non-condensing
- Surge protection: 6kV
Ideal Uses

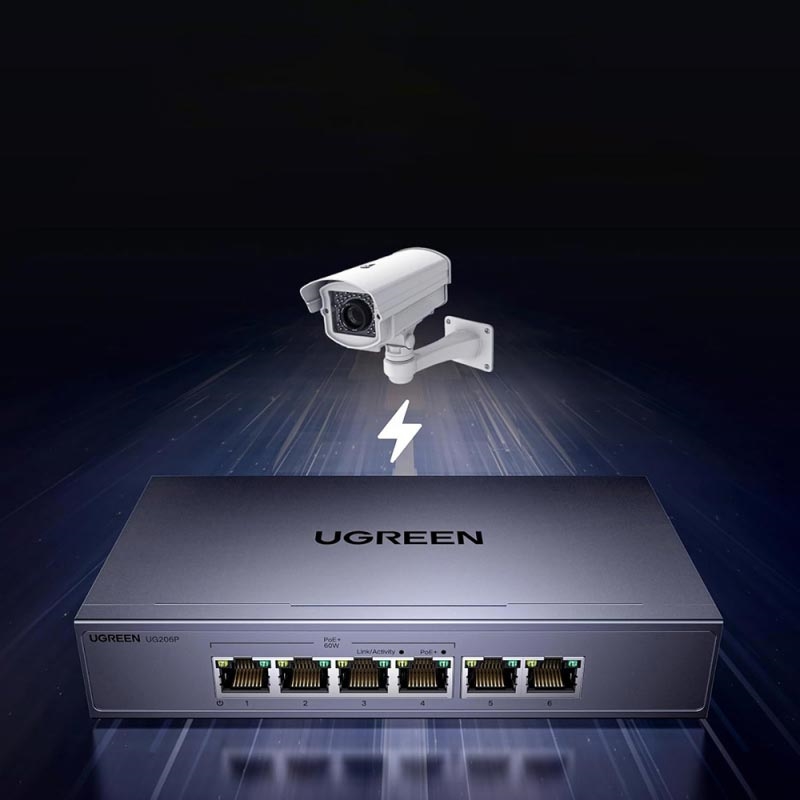

- Powering IP security cameras
- Connecting wireless access points
- Running VoIP phone systems
- Building small office networks
- Extending PoE connections over long cable runs
- Creating isolated camera or device networks with VLAN

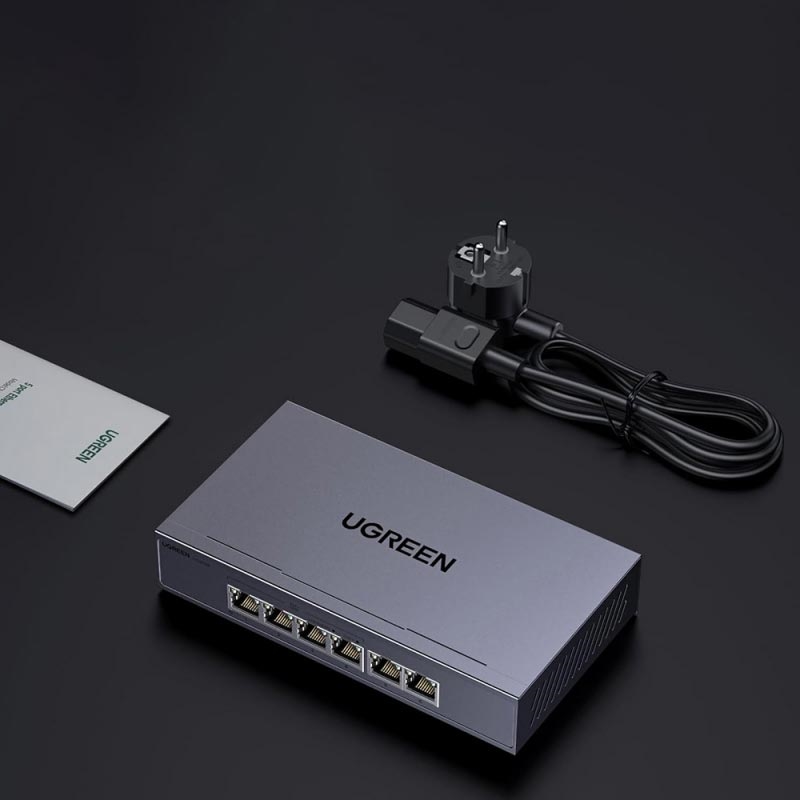

Packing: Euroblister
EAN: 6941876270378
-
