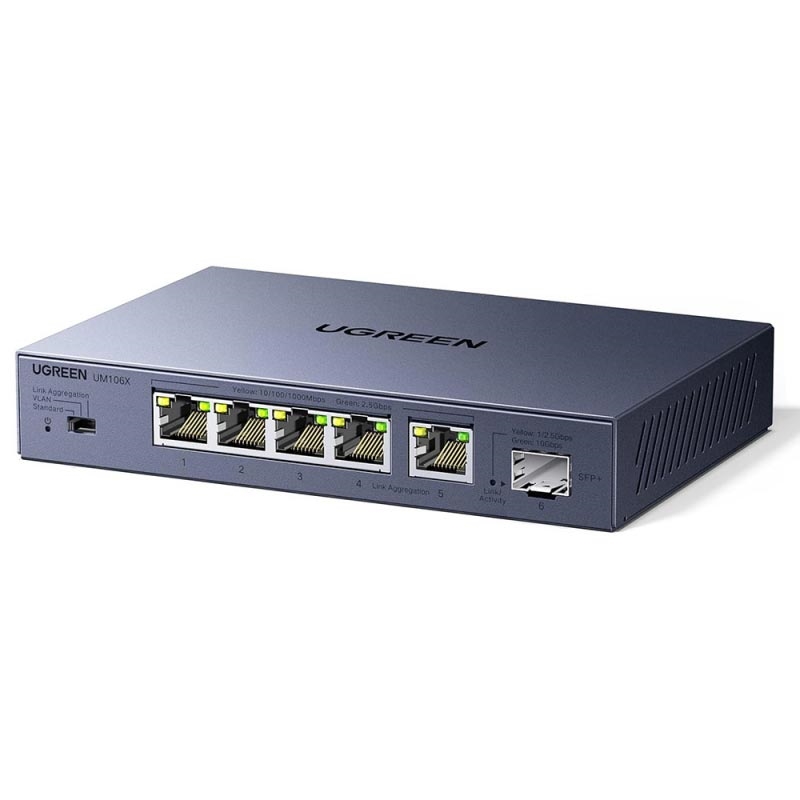

Ugreen 6-Port Multi-Gigabit Ethernet Switch - 5 x 2.5GbE, 1 x 10Gb SFP+
Upgrade your wired network with the Ugreen multi-gigabit Ethernet switch. It combines five 2.5Gbps RJ45 ports with one 10Gbps SFP+ port, providing fast data transfer for workstations, NAS systems, servers and high-performance home or office networks. Its unmanaged Plug & Play design requires no complex setup.

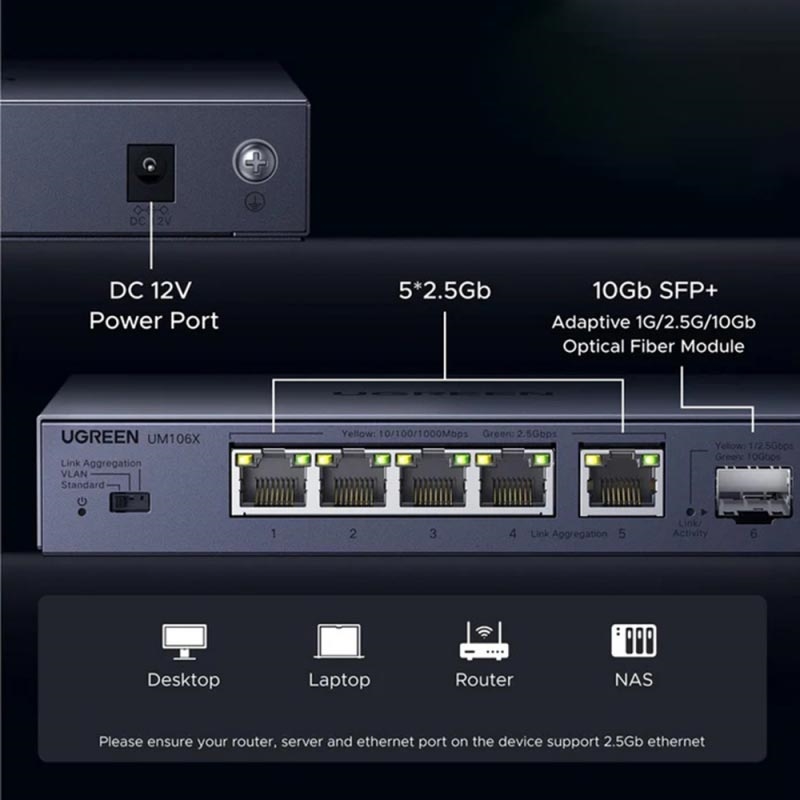

2.5GbE and 10Gb SFP+ Performance
Five 2.5Gbps Ethernet ports provide faster-than-Gigabit connections for compatible devices, while the 10Gbps SFP+ port offers a high-speed uplink option for servers, storage or network backbones.
Simple Plug & Play Installation
As an unmanaged switch, the device works without software configuration. Connect the network cables and compatible devices to start expanding your wired network.
Advanced Network Functions
The switch supports automatic MAC learning, Auto MDI/MDIX, non-blocking switching, VLAN isolation and link aggregation for flexible network deployment.
Key Features
- 5 x 2.5Gbps RJ45 Ethernet ports
- 1 x 10Gbps SFP+ port
- Switching capacity up to 45Gbps
- Unmanaged Plug & Play operation
- Auto MDI/MDIX support
- Full and half duplex operation
- Automatic MAC address learning
- Non-blocking switching architecture
- VLAN port isolation support
- Link aggregation on supported ports
- 12KB Jumbo Frame support
- Durable aluminium alloy housing
Specifications
- Brand: Ugreen
- Product type: Multi-gigabit Ethernet switch
- Switch type: Unmanaged
- PoE support: No
- RJ45 ports: 5 x 2.5Gbps
- SFP+ ports: 1 x 10Gbps
- Network standards: IEEE 802.3/u/x/ab/bz/ae
- Switching capacity: 45Gbps
- Transfer method: Store and Forward
- MAC address table: 4K
- Jumbo frame: 12KB
- VLAN: Supported
- Link aggregation: Ports 4 and 5
- 2.5GbE cable support: Cat5e or higher, up to 100m
- Power input: AC 100-240V, 50/60Hz
- Power output: 12V / 1A max
- Operating temperature: 0 C to 40 C
- Storage temperature: -40 C to 70 C
- Operating humidity: 10%-90% RH, non-condensing
- Material: Aluminium alloy
Ideal Uses
- Connecting a multi-gigabit NAS
- Building a faster home or small-office network
- Linking high-performance desktop computers
- Transferring large files between workstations
- Adding a 10Gbps uplink to network infrastructure
- Streaming high-bitrate media across a local network
Why This Ethernet Switch Is Perfect to Buy
The Ugreen switch is a practical upgrade for users who have outgrown standard Gigabit networking. Its combination of five 2.5GbE ports and a 10Gb SFP+ connection provides plenty of bandwidth for storage, media and professional network applications without requiring managed-switch configuration.
Interesting Facts About Multi-Gigabit Ethernet
2.5GbE can often operate over existing Cat5e cabling, making it an easier upgrade from standard Gigabit Ethernet. SFP+ ports are commonly used for 10Gbps fibre or direct-attach connections, allowing fast links between switches, servers and storage systems.
Packing: Euroblister
EAN: 6941876270569
-
