Samsung Galaxy S6 Battery Replacement

Send this link via e-mail

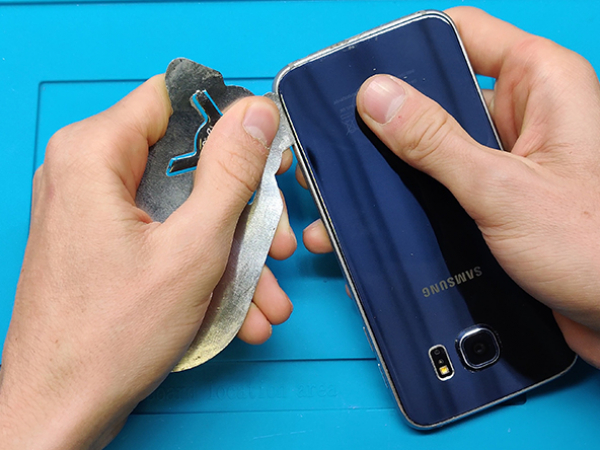

Step 1 - Before You Start

  • Before you start with the repair, discharge the battery below 25%.

  • A charged Li-Ion battery can catch fire and explode if punctured.

  • Caution: If the battery is swollen, take adequate measures and precautions.

  • Do not heat your phone. You can use isopropyl alcohol around the edges of the back cover to weaken the adhesive.

  • Wear eye and hand protection when working with swollen batteries.

thumb image 1
thumb image 2
thumb image 3

Step 2 - Removing The SIM-Tray
Back to top

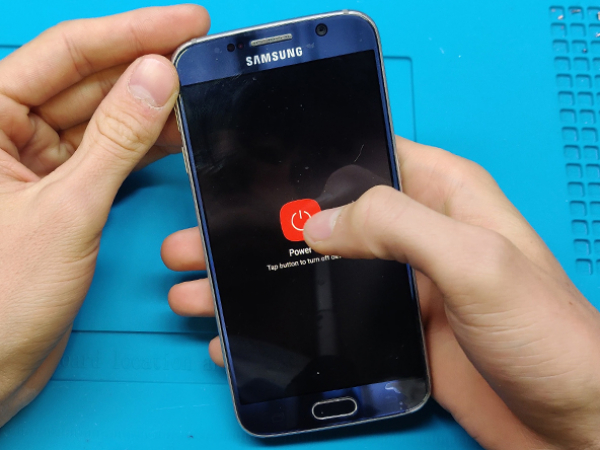

  • Turn off your device.

  • Remove the SIM-tray

  • You can use a simple paper clip if you don't own a SIM eject tool.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5

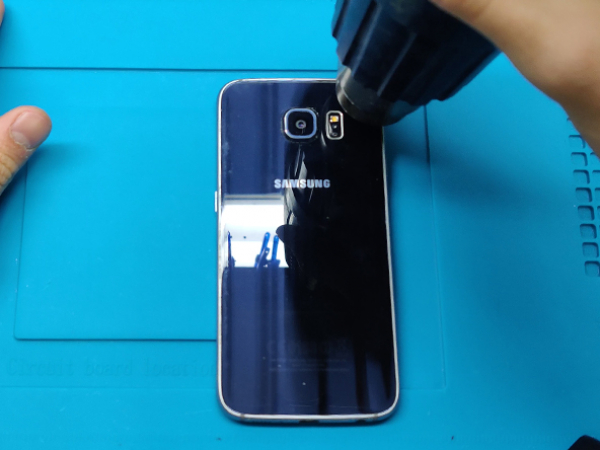

Step 3 - Heating The Glue
Back to top

  • Once you are sure the battery isn't swallen you will start applying the heat around the edges of the back glass cover.

  • You can use a heat gun, hot plate or a simple hair dryer.

  • When the back glass is relatively hot to the touch you can proceed with the next step.

thumb image 1
thumb image 2

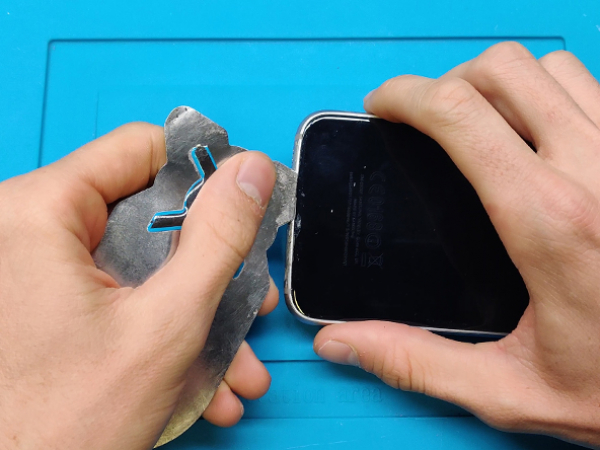

Step 4 - Removing The Back Glass I
Back to top

  • Slide the opening pick or the thin metal opening tool between the glass and the metal frame.

  • Start from the bottom edge of the glass.

  • Note: You can use a suction cup to help you create a small gap underneath the rear glass.

  • Optionally, once the opening tool is inserted, you can add a few drops of isopropyl alcohol into the gap to help weaken the adhesive.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9
thumb image 10

Step 5 - Removing The Back Glass II
Back to top

  • Slide the opening tool along the edges of the phone to slice through the adhesive.

  • You may need to re-heat the rear glass a couple of times to prevent the glue from cooling and hardening.

  • This phone does not have any flat cables and connections under the glass, so you don't have to be too worried when slicing through the glue.

  • Afterwards, the back glass should come off easy.

  • Clean all the glue residue from the metal frame.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6

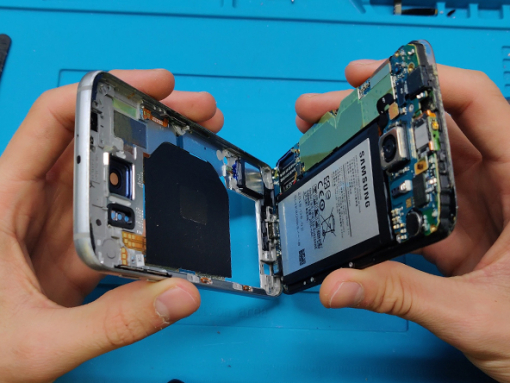

Step 6 - Midframe Assembly
Back to top

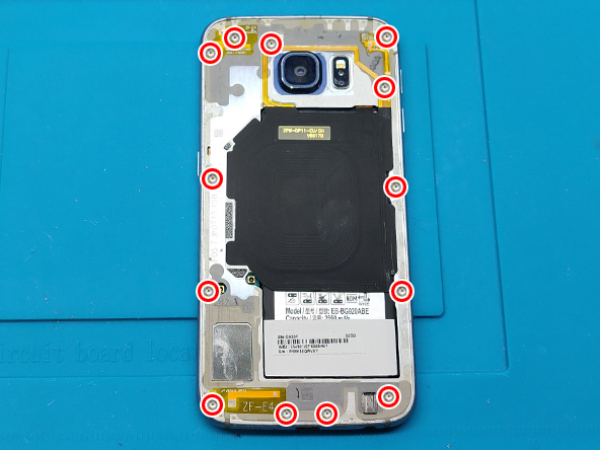

  • Remove the thirteen 3.5mm Phillips #00 screws.

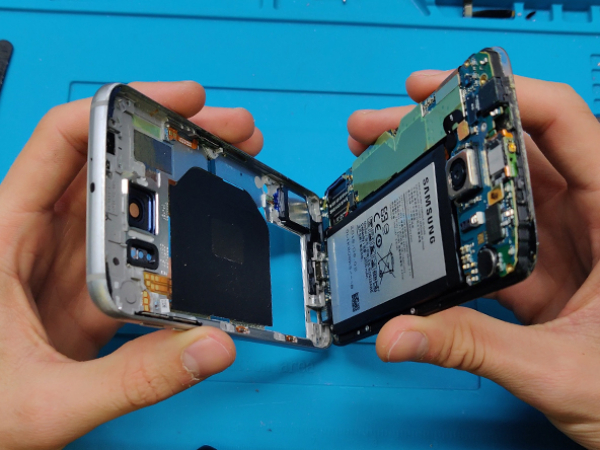

  • Separate the midframe assembly from the rest of the phone.

  • While lifting the midframe, be careful not to damage the audio jack or charging port.

  • You may need to heat the edges of the display to soften the display adhesive if the midframe separation is difficult.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7

Step 7 - Removing The Old Battery
Back to top

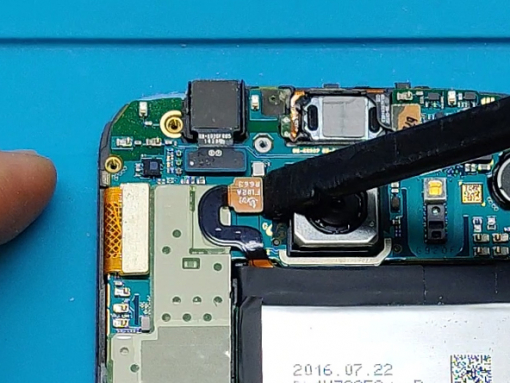

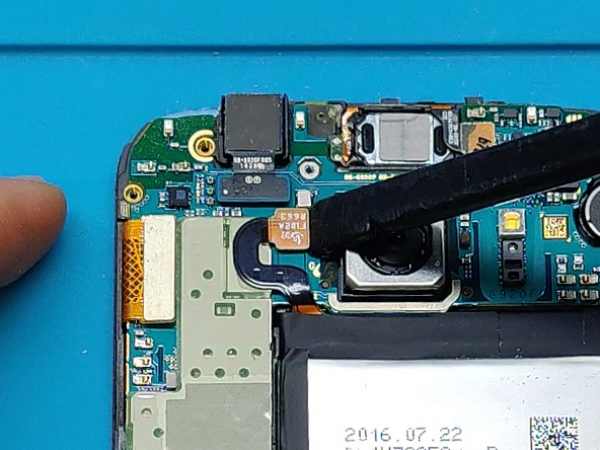

  • Use the flat end of the spudger to disconnect the battery connector from its socket on the motherboard.

  • Gently pry-up the battery.

  • Pay attention not to puncture or deform the battery in the process.

  • Remove the battery from the phone.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9
thumb image 10
thumb image 11

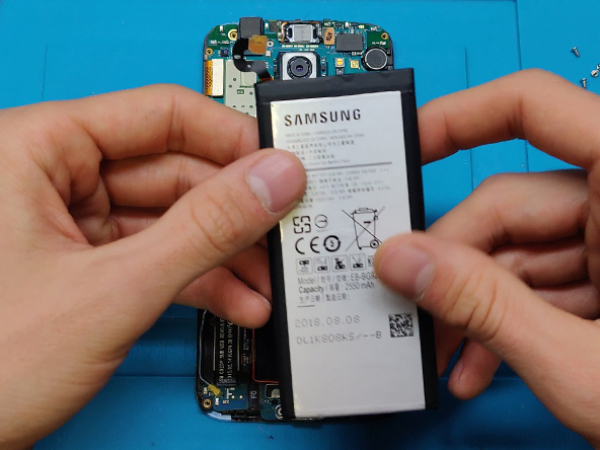

Step 8 - Installing The New Battery
Back to top

  • Connect the new battery to the motherboard.

  • Turn on the device to make sure everything works as intended.

  • If so disconnect the battery connector again before proceeding.

  • Remove the battery.

  • Use 2 strips of doublesided self-adhesive tape to secure the battery.

  • Place the battery on the assembly and press gently with your fingers.

  • Reconnect the battery one final time.

thumb image 1
thumb image 2
thumb image 3
thumb image 4

Step 9 - Reinstalling The Middle Frame
Back to top

  • At this point you should bring the middle metal frame and the rest of the phone back together.

  • Reverse the process of separating the two.

  • This time start from the bottom.

  • Afterwards, put back all the 13 previously removed screws.

thumb image 1
thumb image 2
thumb image 3
thumb image 4

Step 10 - Reinstalling The Back Cover I
Back to top

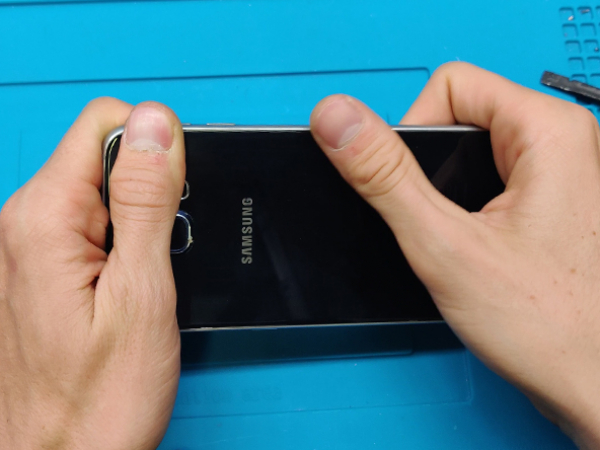

  • It is time to reseal the phone with the back glass.

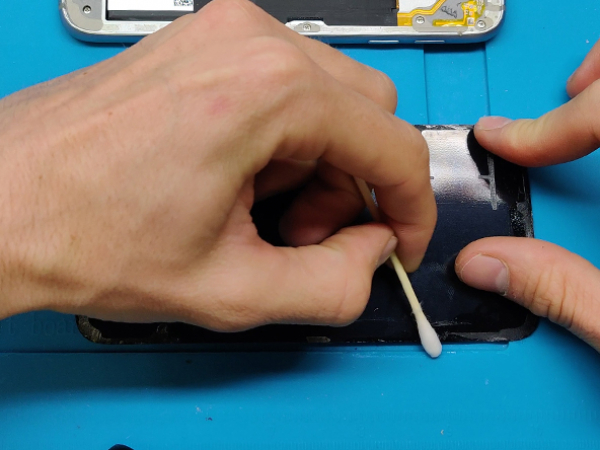

  • Clean up the old glue from the glass cover with tweezers.

  • Use isopropyl alcohol if needed.

  • To secure the back glass to the frame use double-sided self adhesive tape.

  • Lay strips of the tape all around the edges of the metal frame.

  • Remove the top protective layer from the tape.

thumb image 1
thumb image 2
thumb image 3

Step 11 - Reinstalling The Back Cover II
Back to top

  • Place down the back glass starting from the top.

  • Use the camera as guide to help you position the glass properly.

  • Once you are satisfied with the placement of the glass cover, press the cover with your fingers all around the edges.

  • Turn on the phone and enjoy better battery life on your phone.
