Samsung Galaxy Note 2 Front Facing Camera Assembly Replacement

Send this link via e-mail


thumb image 1
thumb image 2

Step 1 - Stylus

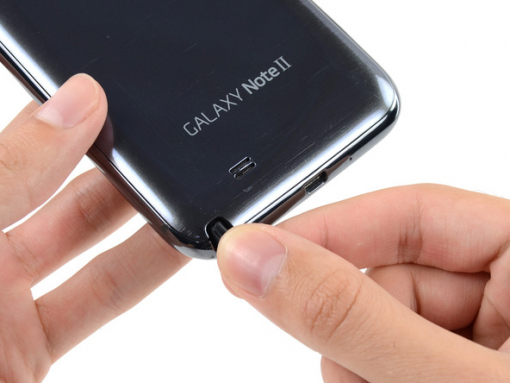

  • Take the end of the stylus and pull it from its slot.

thumb image 1
thumb image 2

Step 2 - Back Case
Back to top

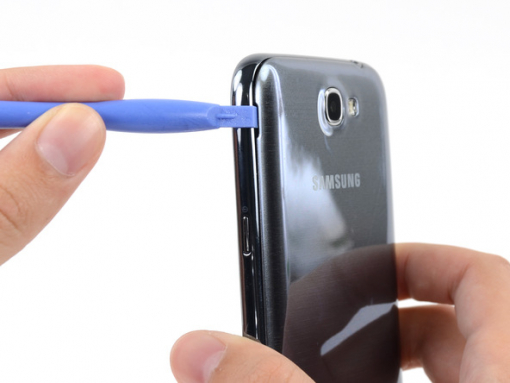

  • Push a plastic opening tool (or, if you don't have one, use your fingernail) into the small opening on the left side of the back camera (near the power button) to pry open the back cover.

thumb image 1
thumb image 2
thumb image 3

Step 3

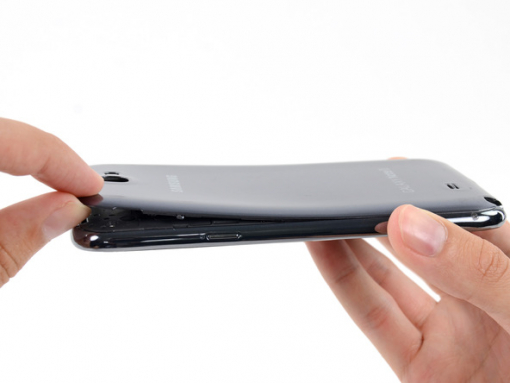

  • Take the corner of the back case closest to the small opening between your fingers and separate the back case from the phone.

thumb image 1
thumb image 2
thumb image 3

Step 4 - MicroSD Card
Back to top

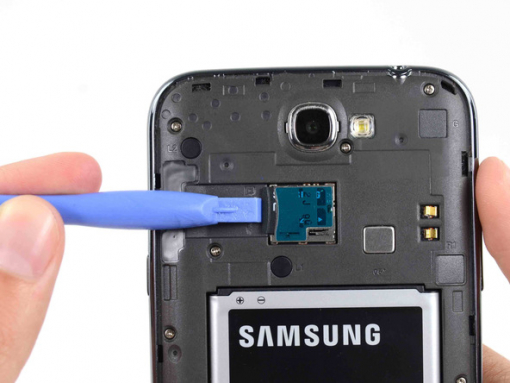

  • Press the microSD card (if you have one) deeper into its slot with the flat end of a spudger (or your fingernail) until you hear a click.

  • After the click, remove the spudger to release the card. The card will pop out of its slot and you will be able to extract it.

  • For reassembly, you'll need to press the card back into its slot until you hear a click.

thumb image 1
thumb image 2

Step 5 - Battery
Back to top

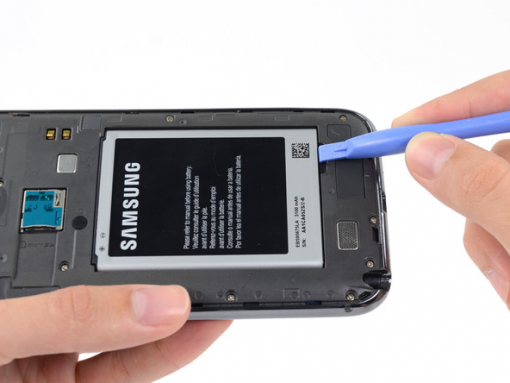

  • Use a plastic opening tool to lift the battery from the case. You need to insert the tool into the indentation above the battery compartment to do this.

Step 6

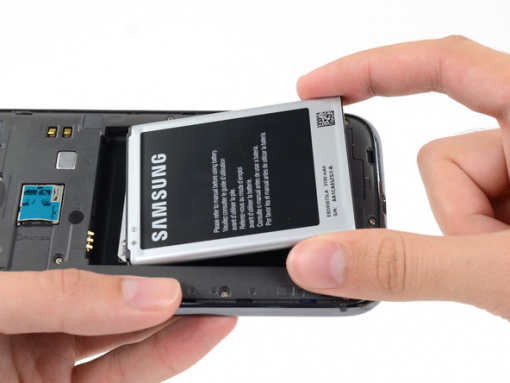

  • Take out the battery from the midframe.

Step 7 - Midframe
Back to top

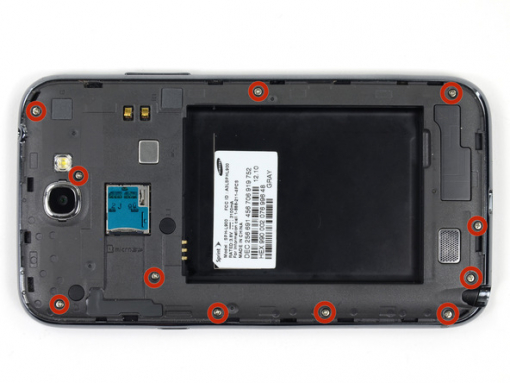

  • There are eleven Phillips screws (4.0 mm) securing the midframe to the display assembly. Remove them.

thumb image 1
thumb image 2
thumb image 3

Step 8

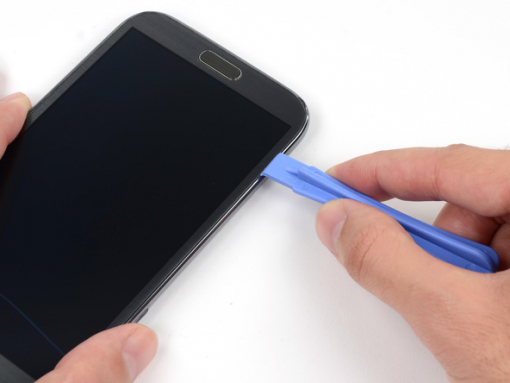

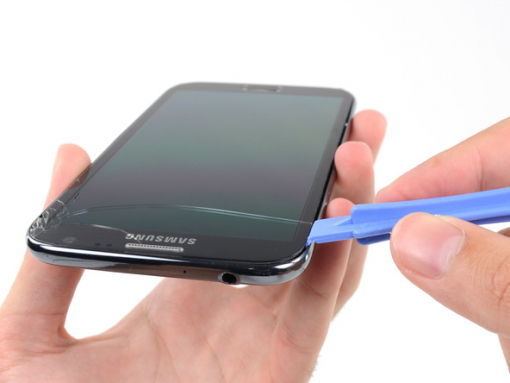

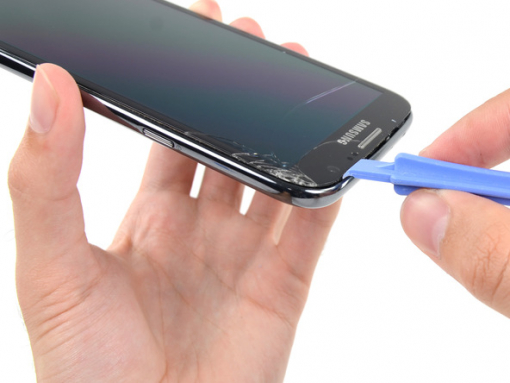

  • Wedge in the plastic opening tool between the midframe and the front panel assembly (the side of the phone).

  • Move the opening tool down the line.

thumb image 1
thumb image 2
thumb image 3

Step 9

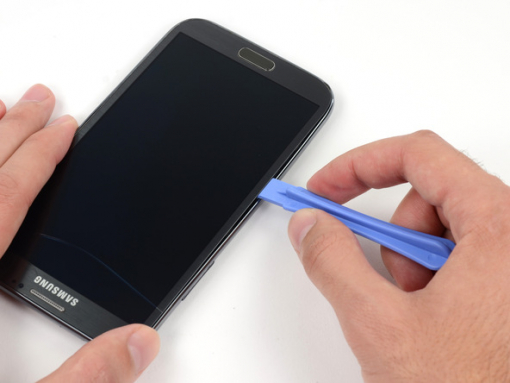

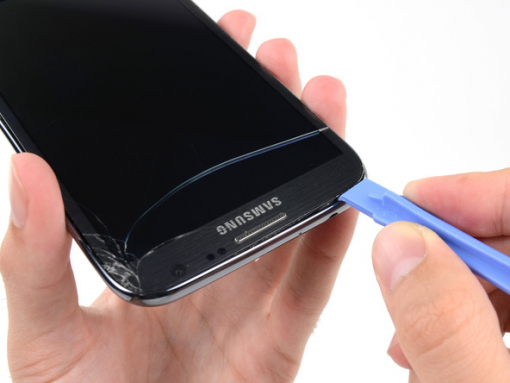

  • Keep sliding down the plastic opening tool.

thumb image 1
thumb image 2

Step 10

  • When you get to the corner of your phone, gently move the plastic opening tool around it.

thumb image 1
thumb image 2

Step 11

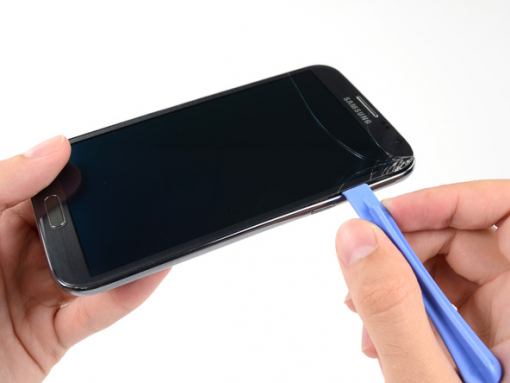

  • With the plastic opening tool pry along the top of the phone.

thumb image 1
thumb image 2

Step 12

  • In order to separate the corner of the midframe from the display assembly, push the plastic opening tool down.

thumb image 1
thumb image 2

Step 13

  • Continue sliding the plastic opening tool until you've freed the last of the clips on the power button side of the phone.

thumb image 1
thumb image 2

Step 14

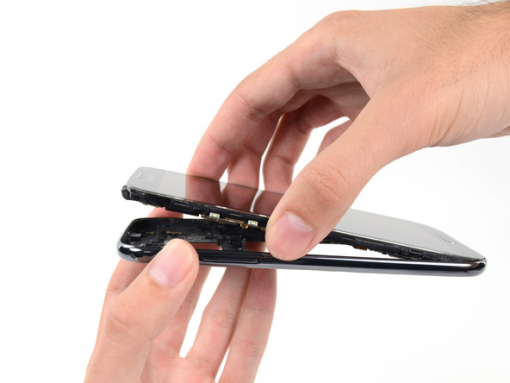

  • Separate the display assembly from the midframe (lift it up).

Step 15 - Front Facing Camera Assembly
Back to top

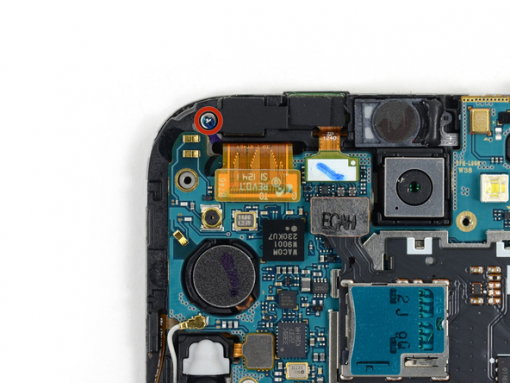

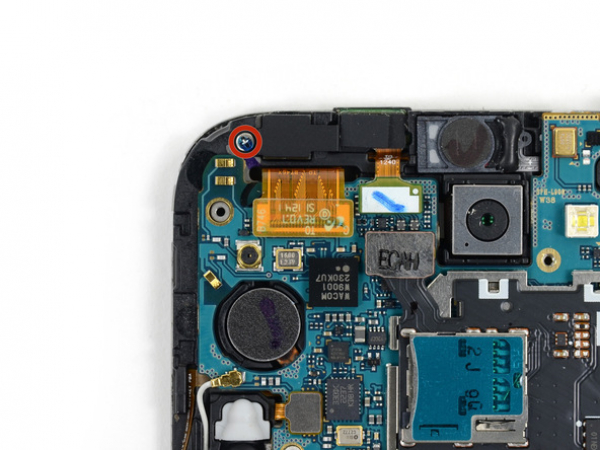

  • There is a Phillips screw (3 mm) on the front-facing camera bracket. Remove it.

Step 16

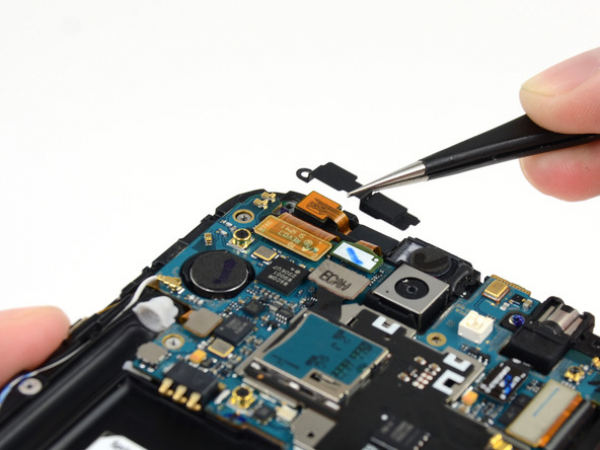

  • Take out the front-facing camera bracket.

Step 17

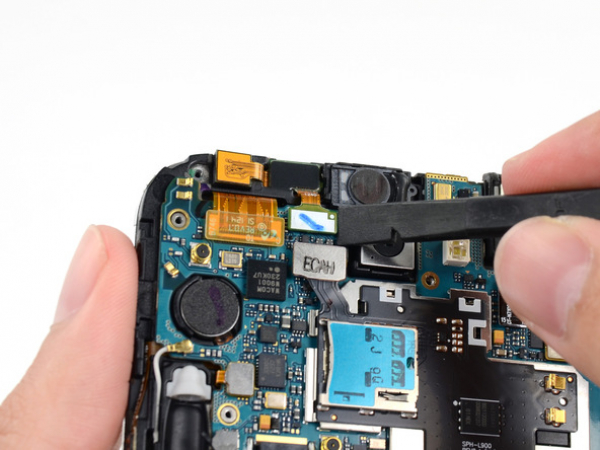

  • Disconnect the front-facing camera connector with the flat end of a spudger.

Step 18

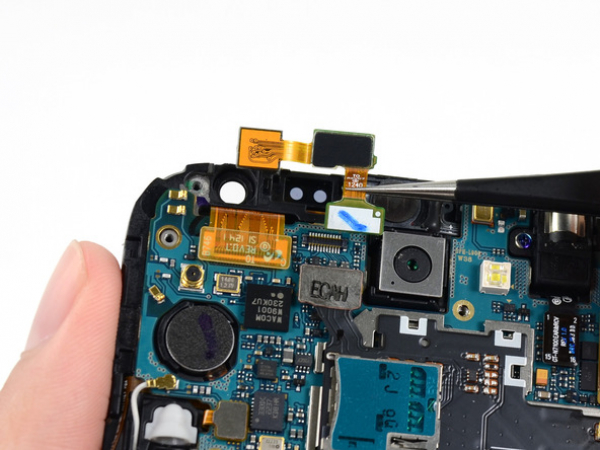

  • Take out the front-facing camera.
