Samsung Galaxy A51 Screen Replacement

Send this link via e-mail


thumb image 1
thumb image 2

Step 1 - Warm Up The Glue

  • Make sure to turn off your Samsung Galaxy A51.

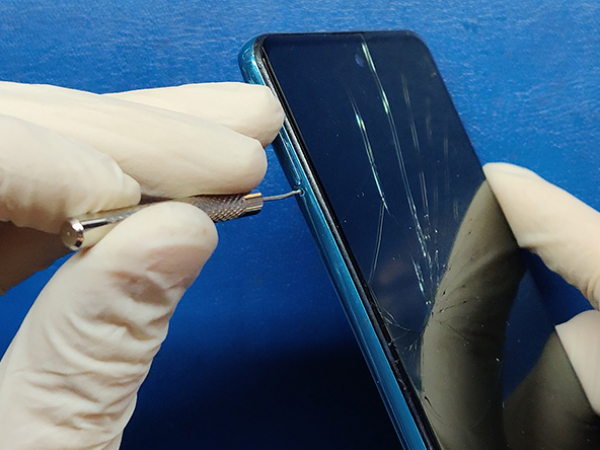

  • Insert a tool for ejecting the SIM card or a paper clip into the hole on the SIM tray at the left side of your phone.

  • Eject and remove the tray.

  • We are using a hot plate machine at 90°C-100°C to loosen the glue. (not shown)

  • You can use a heat gun or a hairdryer to heat up the backside of the phone.

thumb image 1
thumb image 2
thumb image 3
thumb image 4

Step 2 - Removing The Back Cover
Back to top

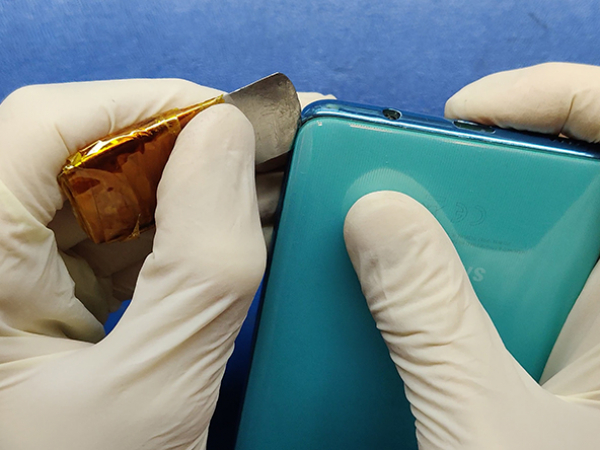

  • Insert the thin metal opening tool between the metal frame and the back cover of the phone.

  • Start from the bottom and go all around the edges to cut through the glue.

  • There are no cables attached to the back cover but avoid inserting the iFlex tool more than 1cm.

  • Remove the back cover.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9
thumb image 10

Step 3 - Midframe
Back to top

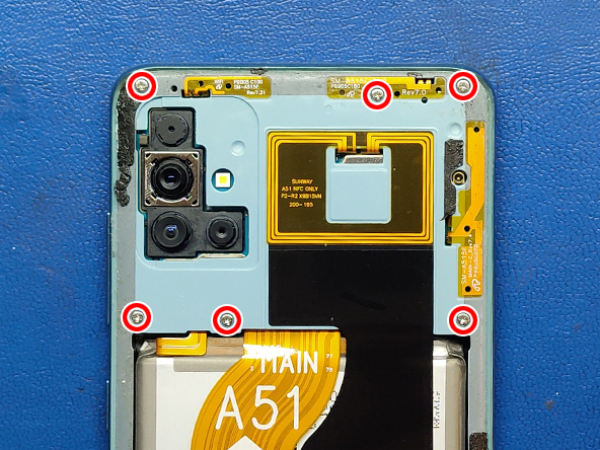

  • Remove the thirteen 3mm Phillips #00 screws which secure the phone's midframe.

  • 6 screws from the top part, 7 screws from the bottom.

  • Plastic clips hold the midframe in place.

  • Insert the opening tool between the midframe and the front panel assembly on the bottom to release the bottom clips.

  • Insert and slide the opening tool along the right side of the phone to release all plastic clips on that side.

  • Repeat the same on the left side of the phone.

  • In the same manner, release the plastic clips from the top part of the phone.

  • Remove the midframe.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6

Step 4 - Disconnect The Battery And The LCD
Back to top

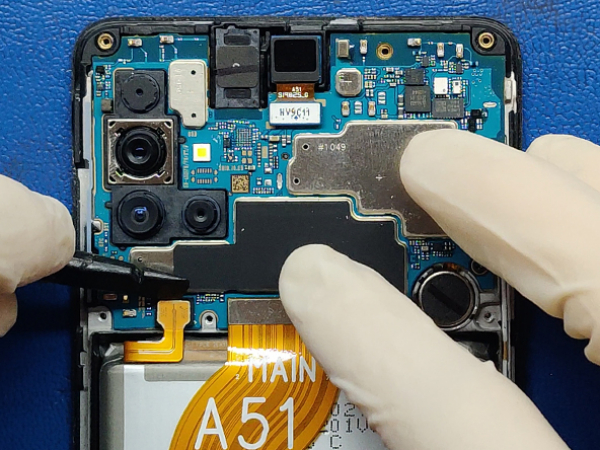

  • Use the flat end of a spudger for prying the battery connector straight up from its socket.

  • Using the flat end of a plastic spudger pry up and disconnect the display flex cable

  • Remove the single near that secures the motherboard, near the vibration motor.

  • Remove two screws from the bottom which secure the fingerprint sensor.

thumb image 1
thumb image 2
thumb image 3
thumb image 4

Step 5 - Removing The Parts
Back to top

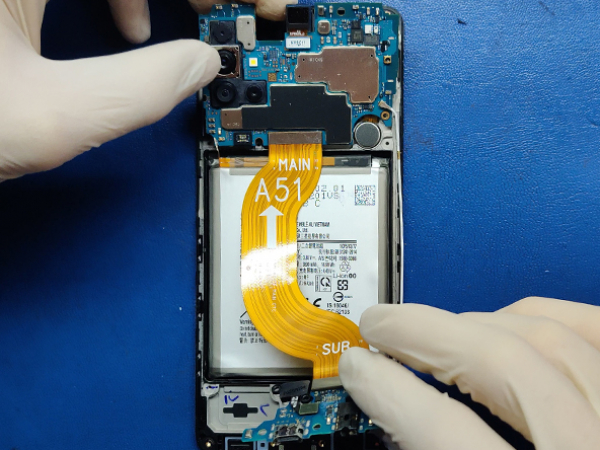

  • Now you can remove the MAIN board (motherboard) and SUB board (lower board), in one step.

  • They should come off with all other parts like the fingerprint sensor and cameras.

  • The SUB board is secured with some glue so pull it up carefully.

  • Also, pay attention to the antenna and flex cables that connect MAIN and SUB board.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9

Step 6 - Transferring The Battery And The Speaker
Back to top

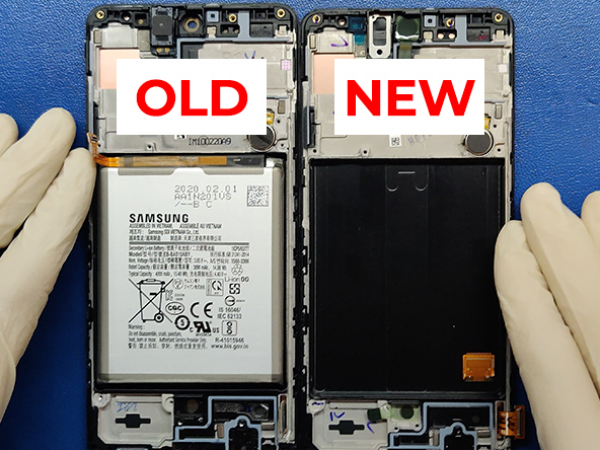

  • Comparing the new and the old LCD assembly we found out that we have to transfer the battery and the speaker.

  • Use isopropyl alchohol to dissolve the glue under the battery.

  • Carefully remove the battery and avoid using sharp tools so you don't puncture the battery.

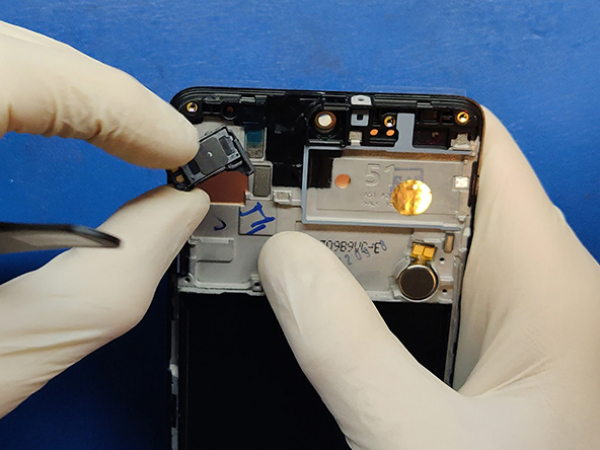

  • Use your tweezers to pry the speaker out of the old LCD assembly.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6

Step 7 - Transferring The Battery And The Speaker
Back to top

  • Install the speaker and the battery into the new LCD assembly.

  • Use two pieces of double-sided self-adhesive tape to secure the battery.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7

Step 8 - Installing The Main And The SUB Board
Back to top

  • Install the MAIN and the SUB board in the new LCD assembly, the same way you removed them from the old one.

  • Yet again pay attention to the fragile cables and connectors.

  • Secure the fingerprintscanner with the two screws you previously removed.

  • Secure the motherboard with the screw you've removed earlier.

  • Tuck in the antenna cable.

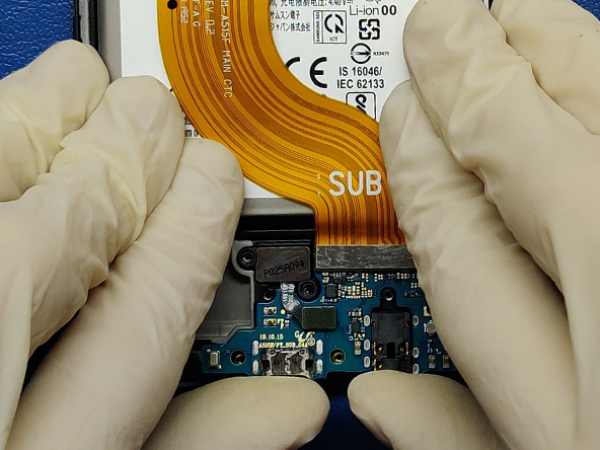

  • Connect the LCD flex to the SUB board connector.

  • Connect the battery cable to the MAIN board connector.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9
thumb image 10

Step 9 - Midframe And Back Cover
Back to top

  • Install the midframe and secure it with 13 screws you removed in STEP 3.

  • Remove the old glue residue from the frame.

  • Add doube-sided adhesive tape all around the frame.

  • Place the back cover on top and press with your fingers along the edges.

  • Turn on your device and enjoy.
