iPhone SE Battery Replacement

Send this link via e-mail


Step 1 - Before You Start

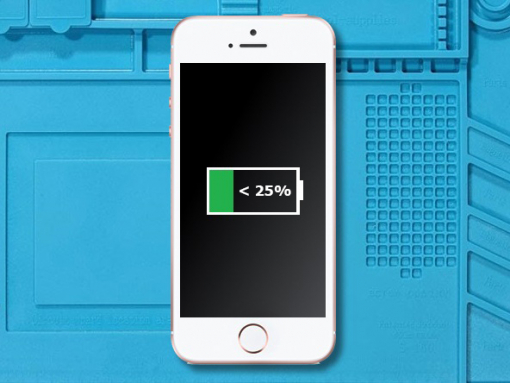

  • Before you start with the repair, the battery should be discharged below 25%.

  • If an Li-Ion battery is charged, it can catch fire or explode if punctured.

  • Caution:

  • If the battery is swollen, take adequate measures and precautions.

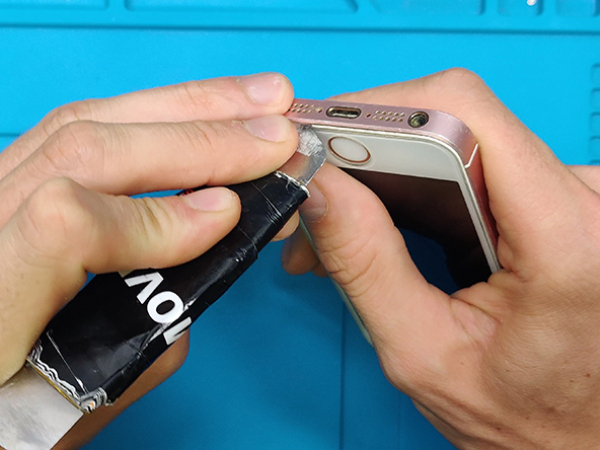

  • Do not heat your phone. You can use isopropyl alcohol around the edges of the back cover to weaken the adhesive.

  • Wear eye and hand protection when working with swollen batteries.

Step 2 - Pentalobe Screws
Back to top

  • Turn off your device.

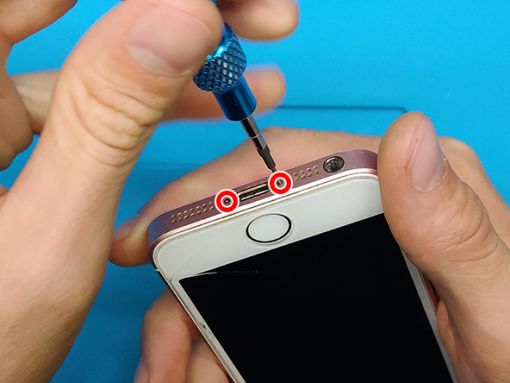

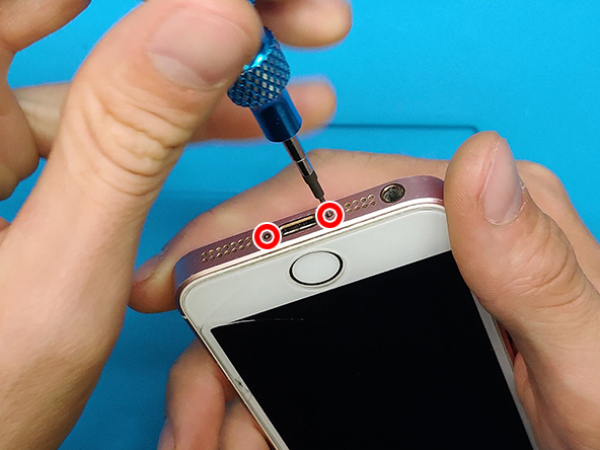

  • Remove the two 3.9 mm pentalobe screws on the bottom edge of the iPhone.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7

Step 3 - Removing The Display
Back to top

  • Insert the thin metal opening tool between the metal frame and the display glass.

  • Lift and separate the front panel from the body of the phone.

  • Work arround the edges.

  • Note:

  • The front panel consists of a glass screen and a plastic bezel with metal clips.

  • Make sure you take out the entire display.

  • If the glass starts separating from the plastic, slide an opening tool between the plastic frame and the metal body of the phone and separate the clips from the case.

  • Tip:

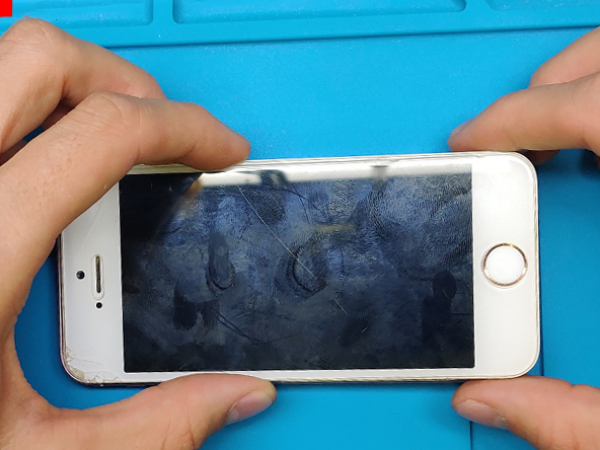

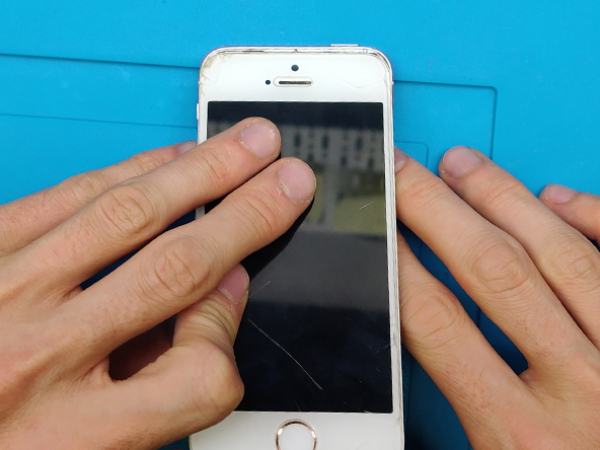

  • If your display glass is cracked, prevent further breakage and possible injuries during your repair by taping over the glass.

  • You can use a suction cup to help you pull the screen out of the frame.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6

Step 4 - Removing The Touch ID Cable Bracket
Back to top

  • Lift the screen or slide it to the side enough to see the metal bracket which covers the home button cable.

  • A spudger can push the bracket free, then remove it with tweezers.

  • Put the home button cable connector out of the socket by prying it up.

  • Caution:

  • Do not lift the screen too far or you risk damaging the home button cable, or the socket.

  • Keep the cable loose, avoid stretching it tight.

  • Only the device's original home button can use the Touch ID functionality.

  • If you install a new home button, it will restore ordinary home button functions.

thumb image 1
thumb image 2

Step 5 - Opening The Phone
Back to top

  • After you disconnected the home button, lift that end of the assembly away from the back case.

  • Open the display to about a 90º angle, using the top part as a hinge.

  • You can usa a box or a unopened bottle to prop the display against it.

  • Again, do not strain the flat cables too much.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5

Step 6 - Disconnect The Battery
Back to top

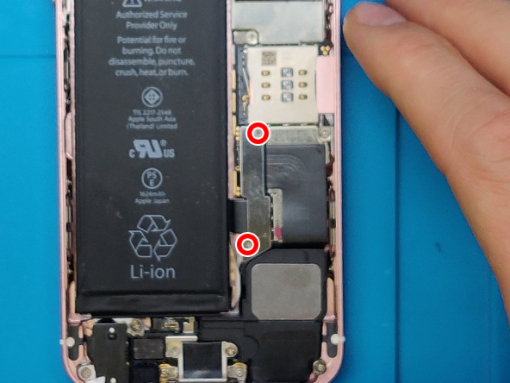

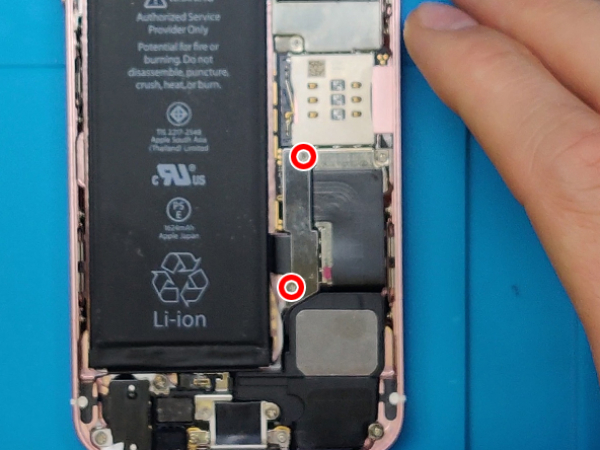

  • The two Phillips #000 1.6 mm screws that secure the battery connector bracket to the mother board should be removed.

  • Remove also the iPhone's metal battery connector bracket.

  • The spurger's flat end can gently disconnect the battery from the logic board.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9
thumb image 10

Step 7 - Removing The Battery
Back to top

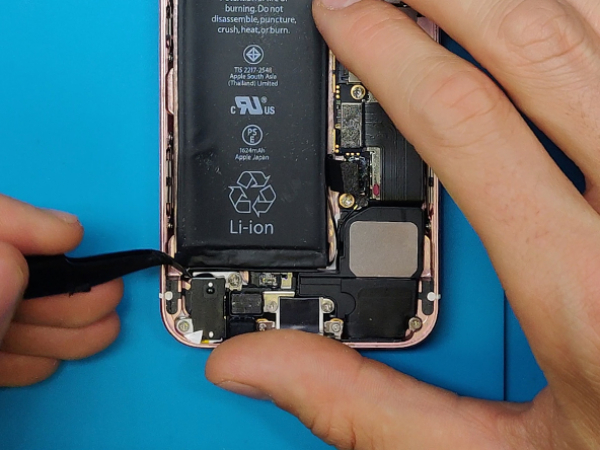

  • Use the tweezers or the tip of the spudger to unfold the battery adhesive tabs between the battery itself and the headphone jack assembly.

  • To separate the two white adhesive strips, cut the black battery adhesive tab between them.

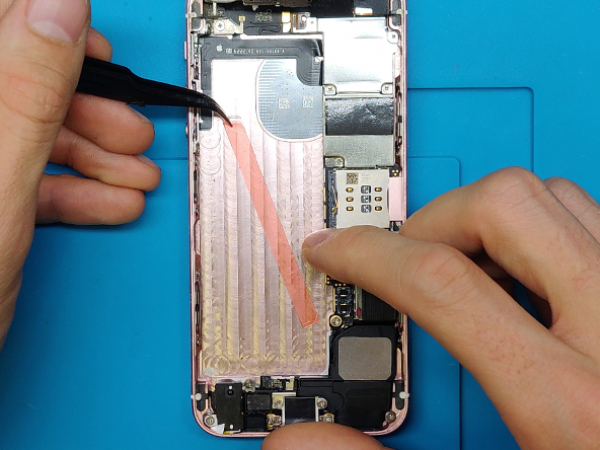

  • Slowly remove battery adhesive strips one by one from the battery.

  • Now, you can remove the battery from the phone.

  • Note:

  • Try keeping the strips unwrinkled and flat.

  • If the strips wrinkle, they may stick together and break and not pull out cleanly.

  • You may need to pry out the battery, as always proceed with caution.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9
thumb image 10
thumb image 11
thumb image 12
thumb image 13
thumb image 14

Step 8 - Installing The New Battery
Back to top

  • If your replacement battery is in a plastic sleeve, pull it away from the ribbon cable.

  • In case your new battery does not have adhesive preinstalled, you can use double sided adhesive tape, like we did.

  • Reconnect the battery and reverse the steps 5 to 1.

  • After reassembly, we recommend you perform a hard reset. This prevents possible issues and makes troubleshooting easier.

  • Enjoy your phone with a brand new battery.
