iPhone 6 Plus LCD Replacement

Send this link via e-mail


thumb image 1
thumb image 2

Step 1 - Discharge The Battery And Power Off The Phone

  • Power off your iPhone before you begin the disassembly.

  • Before you begin, discharge your iPhone battery below 25%. Lithium-ion batteries can catch fire and explode if accidentally punctured, especially with metal tools.

thumb image 1
thumb image 2
thumb image 3
thumb image 4

Step 2 - Opening Procedure
Back to top

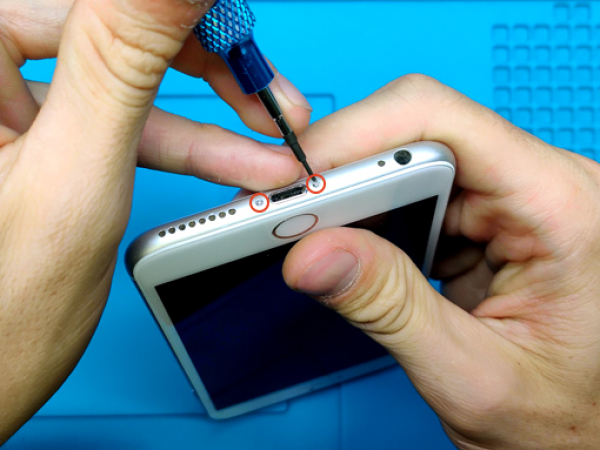

  • Remove the two pentalobe screws (3.6 mm) on both sides of the Lightning connector.

  • Slide in the flat metal opening tool between the display and the metal frame.

  • Start from the bottom part of the phone.

  • Twist the spudger to widen the gap between the display and rear case.

  • Advance alongside the right and the left edge until all the clips pop off.

  • Note:

  • Do not pry along the top edge of the phone, you risk damaging the plastic clips securing the display.

  • Tip 1:

  • If your display glass is shattered, prevent furhter glass breakage and injuries by taping over the glass.

  • Lay overlapping strips of clear self-adhesive tape over the phone's display until it is completely covered.

  • Tip 2:

  • Heating the lower edge of the iPhone will help soften the adhesive securing the display, which makes it easier to open.

  • Use a heatgun, or a hairdryer to apply heat to the lower edge of the iPhone for about a minute in order to soften up the adhesive underneath.

thumb image 1
thumb image 2
thumb image 3

Step 3 - Lifting The Display
Back to top

  • Pull the bottom end of the front panel away from the metal case of the phone, using the top edge of the phone as a hinge.

  • Avoid pulling the display to more than 90º, and use something to prop it up against while you are working on the phone.

thumb image 1
thumb image 2
thumb image 3

Step 4 - Battery Connector
Back to top

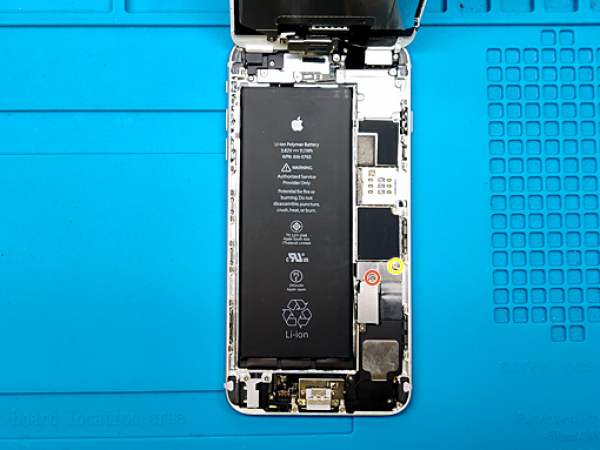

  • Remove one 2.3mm screw and one 3.1mm screw.

  • Remove the metal bracket that protects the battery connector.

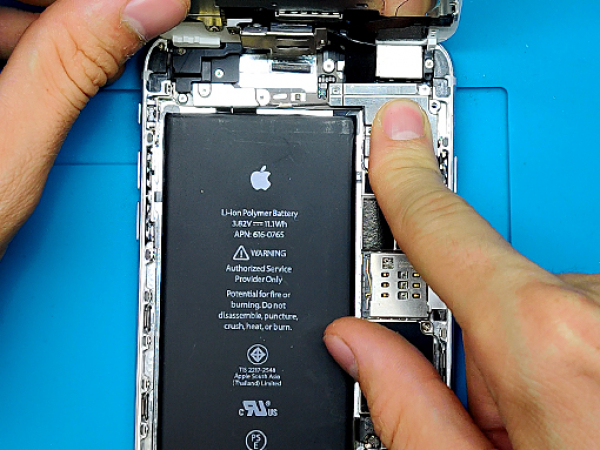

  • Disconnect the battery with the edge of an opening tool or pry it gently with a clean fingernail.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5

Step 5 - Front Panel Assembly Connectors
Back to top

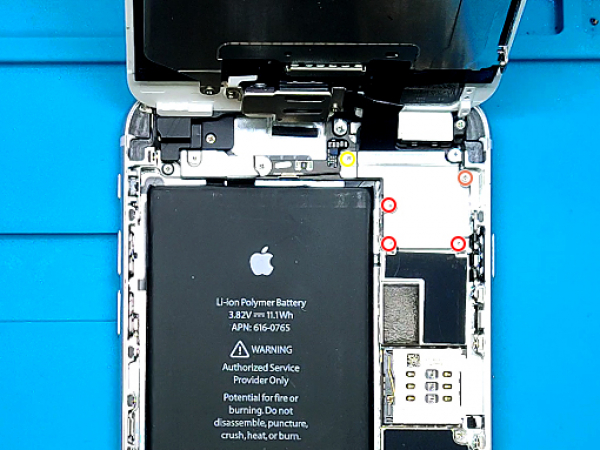

  • Remove the five Phillips screws that secure the front panel assembly connector metal bracket:

  • 3x 1.2mm screws

  • 1x 1.5mm screw

  • 1x 2.9mm screw

  • Remove the front panel assembly bracket.

  • Keep the LCD proped and supported at all times.

  • Again, use your fingernails or the edge of an opening tool to disconnect the front-facing camera connector.

  • Disconnect the earpiece speaker connector.

  • Disconnect the home button cable connector.

  • Disconnect the LCD cable connector.

  • Remove the front panel assembly from the phone's rear case.

  • Caution:

  • Sort the screws when removing them so you can put them back at their proper sockets.

  • Some screws are longer than others, and inserting them into the wrong wholes may cause an irreparable damage.

  • Note:

  • Pay attention that you pry up only on the cable connectors, and not on their sockets on the logic board.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5

Step 6 - Home Button
Back to top

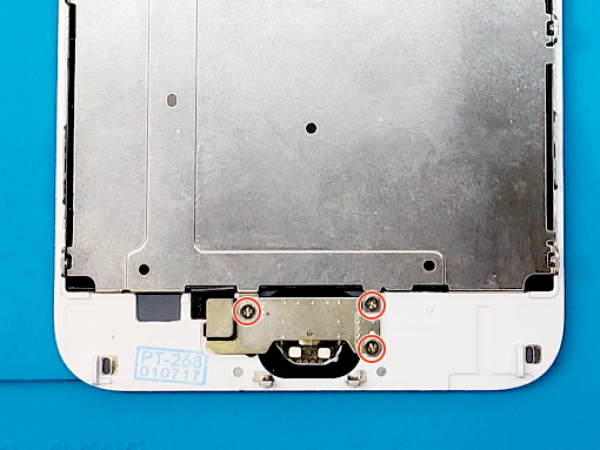

  • Use a Phillips screwdriver to remove three 1.8mm screws from the bottom part of the assembly.

  • Remove the metal bracket that secures the home button.

  • Disconnect the home button connector cable.

  • Carefully remove the home button/fingerprint scanner.

  • Note:

  • The Touch ID will ONLY work with your phone's original home button, so you'll need to transfer the home button from your old screen to your new screen.

  • Your replacement LCD may come with an extra Phillips screw already installed near the home button.

  • Remove that screw so that you can reinstall the home button and the bracket.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7

Step 7 - Earpiece
Back to top

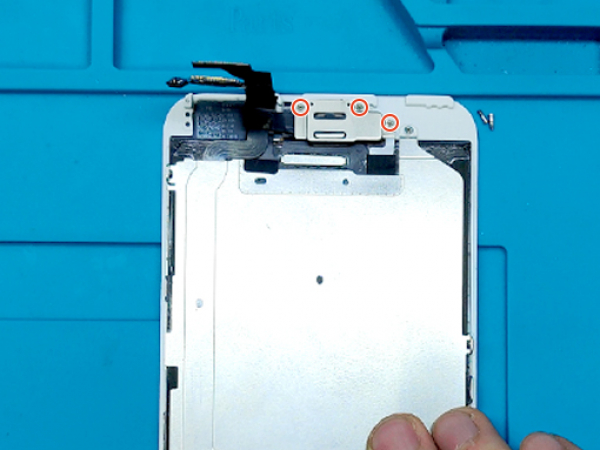

  • Now remove the 3 screws from the top part of the assembly.

  • Remove the metal bracket of the earpiece, front camera and sensor array.

  • Remove the earpiece.

  • Remove the front camera and sensor array as a one piece.

  • Note:

  • Sensors and the camera come off as one piece.

  • Remove the earpiece mesh glued together with it.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9
thumb image 10

Step 8 - Metal Shield
Back to top

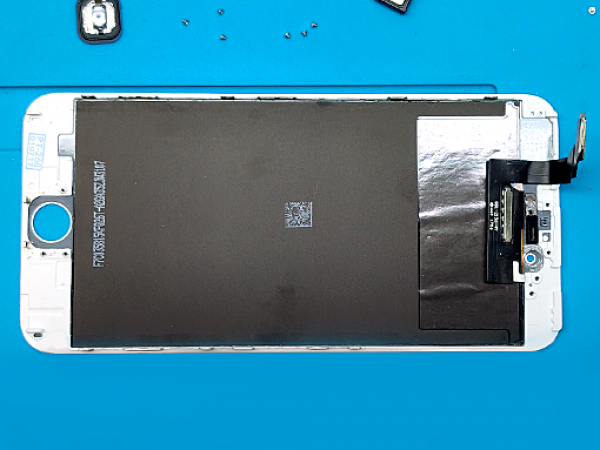

  • Your replacement front panel assembly may come without a metal shield.

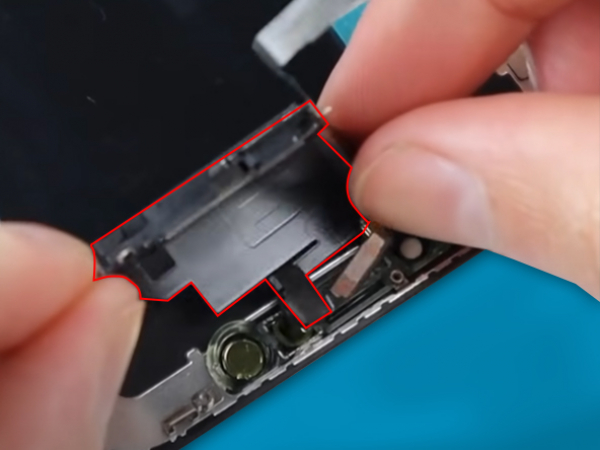

  • The home button flat cable and both parts of the connectors are glued onto it.

  • You will need to transfer it from the old one.

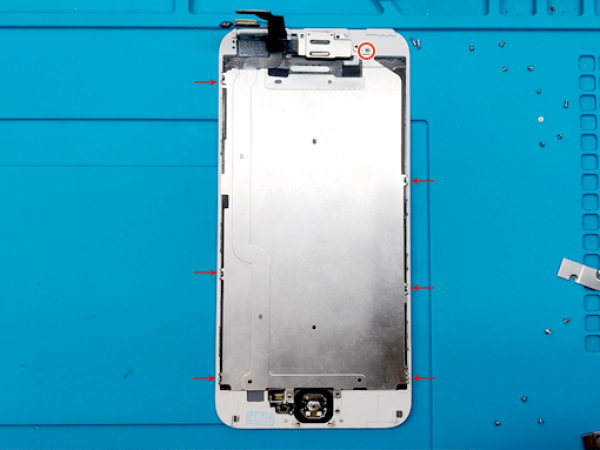

  • Remove 6 screws, 3 on both sides of the assembly.

  • Remove one screw from the top.

  • Two screws from the bottom are already removed with the home button bracket.

  • Carefully unglue the homebutton connector with tweezers.

  • Now you can remove the shield with a home button cable attached to it.

  • Note:

  • Compare your original screen with the new replacement part.

  • Check which components you need to transfer before installing.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9
thumb image 10
thumb image 11
thumb image 12
thumb image 13

Step 9 - The Transfer
Back to top

  • Now take the new front panel assembly and install the metal shield you previously removed.

  • Align it with the back side of the assembly secure it with six side screws.

  • Glue down the bottom home button connector to the panel.

  • Insert the home button into the bottom hole and plug the connector in.

  • Place the metal bracket on top of it and secure it with three 1.8mm screws.

  • Now install the front camera, sensors and earpiece.

  • Place the bracket on top of the assembly and secure it with five screws you removed from the old panel.

  • Note:

  • Your replacement LCD may come with an extra screw installed left of the home button.

  • Remove that screw prior to reinstalling the home button bracket.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6

Step 10 - Connecting The New LCD
Back to top

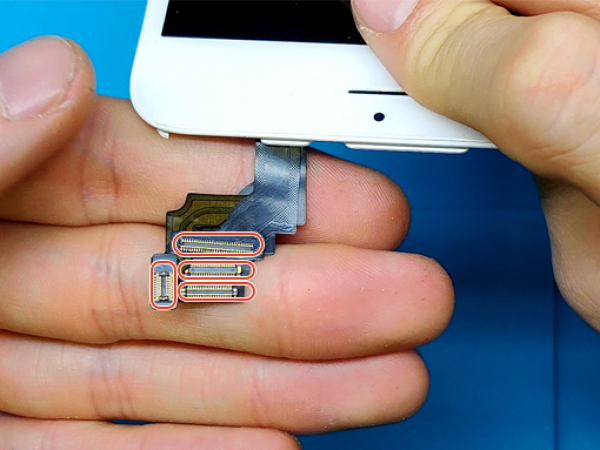

  • It is time to connect the front panel to the logic board.

  • Connect the LCD cable connector.

  • Disconnect the home button cable connector.

  • Disconnect the earpiece speaker connector.

  • Connect the front-facing camera connector.

  • Reconnect the battery so you can test the phone.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8

Step 11 - Reassemble The Device
Back to top

  • Turn off your phone, disconnect the battery and lift the screen once more.

  • Keep the front panel propped at all times.

  • Install the metal bracket and secure it with five screws you removed at Step 5.

  • Reconnect the battery one final time.

  • Install the metal bracket and secure it with 2 screws removed in Step 4.

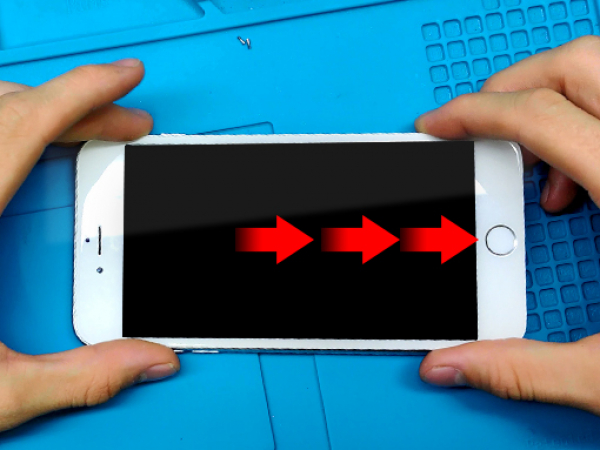

  • Now lower the front panel and pop in the clips starting with the top ones.

  • Gently press the edges of the screen and work your way down.

  • Finish off the repair with the two pentalobe screws (3.6 mm).
