iPhone 5S Earpiece Speaker Replacement

Send this link via e-mail


Step 1 - Front Panel Assembly

  • Turn off your iPhone before starting the disassembling process.

  • There are two 2 mm Pentalobe screws next to the Lightning connector. You need to remove them.

thumb image 1
thumb image 2
thumb image 3

Step 2 - ISclack Opening Procedure
Back to top

  • In the next two steps you'll learn how to use the iSclack - a tool for safely opening the iPhone 5s. Using this tool is recommended for anyone who plans on repairing their device more than once. If you're not planning on using the iSclack, proceed to step 4.

  • Open the suction cups by closing the handle on the iSclack.

  • Put the bottom of your iPhone between the suction cups. It needs to be pressed against the plastic depth gauge.

  • Put the bottom of your iPhone between the suction cups. It needs to be pressed against the plastic depth gauge.

  • Open the handles in order to close the iSclack. Position the cups so that they are pressing the top and bottom of your iPhone in the center.

thumb image 1
thumb image 2

Step 3

  • Hold your iPhone securely and separate the suction cups once again (by closing the handle). Pull the front panel away from the rear case.

  • The iSclack is designed in a way that will open your iPhone safely and enough to separate the pieces. It won't damage the home button cable.

  • Remove the suction cups from your iPhone.

  • Skip the next three steps and proceed with step 7.

Step 4 - Manual Opening
Back to top

  • In case you don't have an iSclack, you can use a single suction cup in order to lift the front panel.

  • Press the cup onto the screen, above the home button.

  • Make sure the cup is pressed completely against the screen. This will get you a tight seal.

Step 5

  • There are several ribbon cables connecting the front panel to the rest of the phone and it is also attached with clips. You need to loosen the clips just enough to disconnect the cables. Do this slowly and carefully to avoid any damage.

  • The cup should be firmly pressed to the front panel assembly (near the home button).

  • Hold the iPhone down with one hand and pull up on the suction cup. Separate the front panel (the home button end) only a little from the rear case.

  • Pry the edges of the rear case down and away from the front panel assembly using a plastic opening tool. Do this while pulling up with the suction cup.

  • You may need to apply some force in order to do this. Don't rush it and be careful, because the 5s front panel assembly is harder to remove than on other devices.

thumb image 1
thumb image 2

Step 6

  • There are still some ribbon cables securing the front panel assembly at the top of the iPhone, so don't remove the assembly completely immediately.

  • Pull up the ring on the suction cup to separate it from the iPhone.

  • Take the suction cup off the display assembly.

thumb image 1
thumb image 2
thumb image 3

Step 7

  • Pry open the iPhone enough to reveal the metal bracket that is covering the home button cable.

  • If you open the iPhone too much, you can damage the home button cable or the socket it plugs into. The cable should be loose. In case it's stretched taut, that means that you've opened the iPhone too much.

  • Bear in mind that the Touch ID function will work only with the phone's original home button assembly. If you rip the cable, you'll have to install a new home button which won't come with the Touch ID features.

  • Push the bracket with the tip of a spudger and take it off with a pair of tweezers.

Step 8

  • Take out the home button cable connector out of its socket with the tip of a spudger.

  • Be careful not to lift out the entire socket. You only need to separate the cable connector from its socket. The socket itself is located on its own glued-down cable that can also be pried up if you're not careful.

thumb image 1
thumb image 2

Step 9

  • After releasing the connector, pull the assembly away from the rear case (by the home button end). Use the top of the phone as a hinge of sorts.

  • In the next few steps, keep the front panel assembly at a 90º angle (in relation to the rear case) until you have removed it.

Step 10

  • There are four Phillips screws securing the front panel assembly cable bracket to the logic board. You need to remove them.

  • Two 1.7 mm screws

  • One 1.2 mm screw

  • One 1.3 mm Phillips screw

  • The last one might not get attracted to a magnetized screwdriver, so be careful not to lose it while you're removing the screws.

Step 11

  • Take the front panel assembly cable bracket away from the logic board.

thumb image 1
thumb image 2

Step 12

  • Disconnect the front-facing camera and sensor cable with the flat end of a spudger.

thumb image 1
thumb image 2

Step 13

  • Disconnect the digitizer cable connector (you're still supporting the front panel).

thumb image 1
thumb image 2

Step 14

  • Lastly, disconnect the LCD cable connector.

  • While you are reassembling your phone, the LCD may pop off the connector. If this happens, your phone could have white lines or a blank screen when you turn it back on. To solve this problem, reconnect the cable and power cycle your phone. The best way to do this is to disconnect and then reconnect the battery.

Step 15

  • Separate the front panel assembly from the rear case.

Step 16 - Earpiece Speaker
Back to top

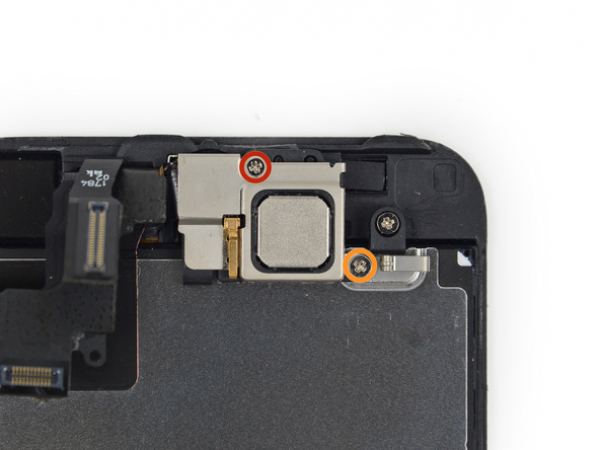

  • There are two screws securing the upper component bracket. You need to remove them.

  • One 4 mm Phillips screw

  • One 2.3 mm Phillips screw

thumb image 1
thumb image 2
thumb image 3

Step 17

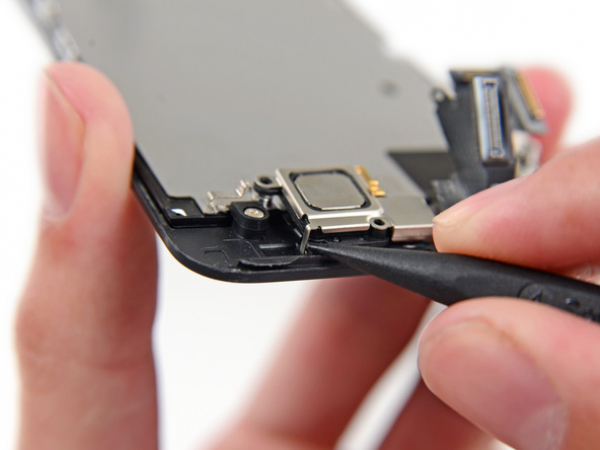

  • Lift the left leg of the bracket off of the earpiece speaker with the tip of a spudger.

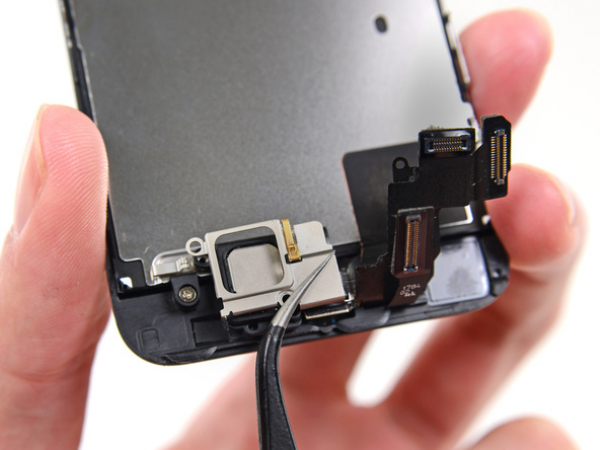

  • Move the bracket to the left to unclip it using a pair of tweezers.

Step 18

  • Take the bracket off the display.

thumb image 1
thumb image 2

Step 19

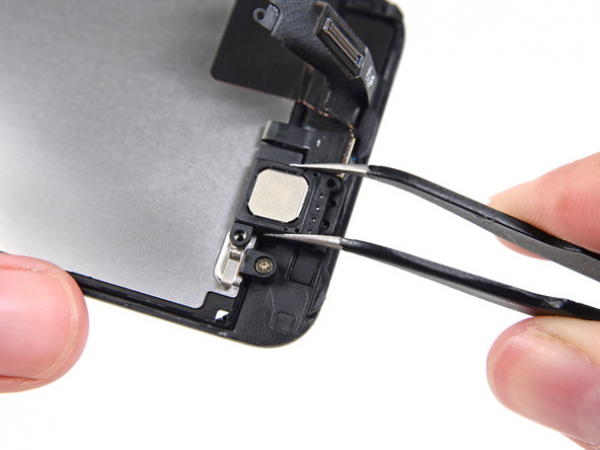

  • Take off the earpiece speaker using a pair of tweezers.

  • In case you're planning on using your fingers instead of tweezers, be careful not to touch the gold contacts on the front panel, because finger old can get in the way of good contact.
