iPhone 4S Back Panel Replacement

Send this link via e-mail


Step 1 - Rear Panel

  • Prior to disassembling your iPhone, make sure to turn it off.

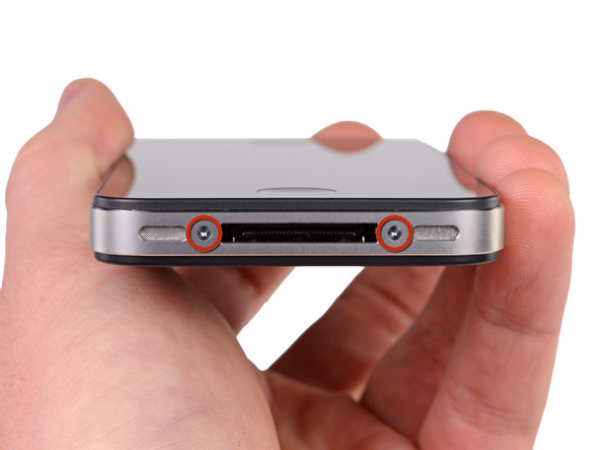

  • Two 3.6 mm Pentalobe screws next to the dock connector need to be removed

  • While assembling the phone again, we suggest you to replace the 5-point screws with equivalent Phillips screws.

  • The 5-Point Screwdriver is meant to be used only once, as it may strip the screws.

thumb image 1
thumb image 2

Step 2

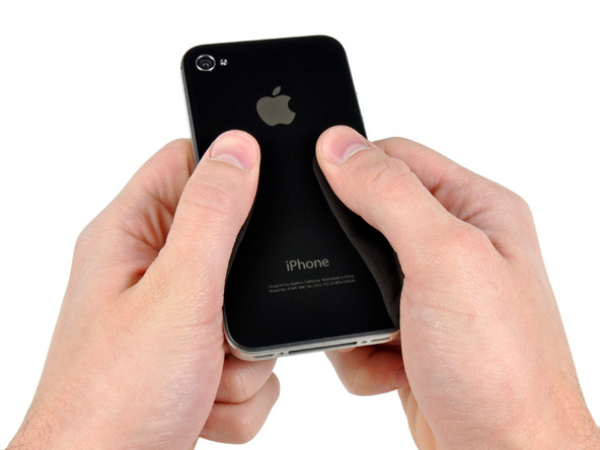

  • Press the back panel and push it towards the top edge of the iPhone.

  • Back panel will move about 2 mm.

Step 3

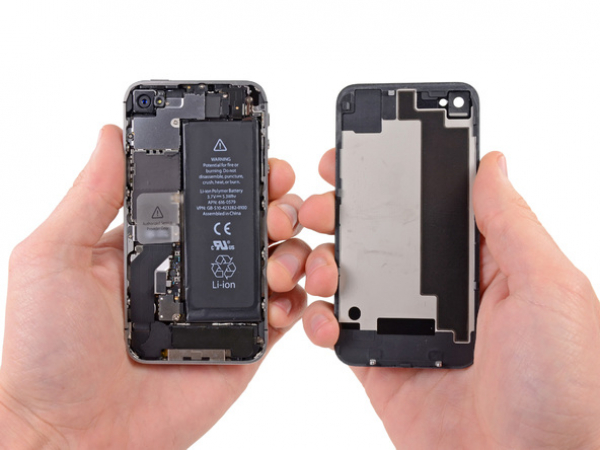

  • Separate the back panel from the back of the iPhone, and make sure not to damage the plastic clips fixed to the back panel.

  • Remove the back panel from the iPhone.
