iPhone 4 Screen Replacement

Send this link via e-mail


thumb image 1
thumb image 2

Step 1 - Rear Panel

  • Back panel on your iPhone 4 has either two #000 Phillips screws or Apple's 5-Point "Pentalobe" screws. Make sure to check which screws are used; also make sure that you have the appropriate screwdriver in order to remove them.

  • Remove the two 3.6 mm Pentalobe or Phillips #000 screws next to the dock connector.

  • While reassembling the phone, we suggest you to replace the 5-point screws with equivalent Phillips screws. We have all the necessary tools and screws needed to replace the Pentalobe screws with Phillips screws.

thumb image 1
thumb image 2

Step 2

  • Force the rear panel toward the top edge of the iPhone.

  • The panel will move about 2 mm.

Step 3

  • Squeeze the rear panel with your fingers and lift it away from the iPhone.

Step 4 - Battery
Back to top

  • 2.5 mm Phillips screw that secures the battery connector to the logic board needs to be removed.

  • Sometimes it may happen that certain devices have two screws, one of them securing the contact pad which is located above the screw marked red in the photo.

thumb image 1
thumb image 2

Step 5

  • Gently separate the battery connector from the ends closest to the top and bottom edges of the iPhone using an iPod opening tool.

  • Make sure to raise only the silver battery connector and not the black connector on the logic board. If you force the logic board connector, you might break it entirely.

  • Do not push against the contact clip.

  • Separate the contact clip from the iPhone.

thumb image 1
thumb image 2
thumb image 3

Step 6

  • Gently lift the battery out of the iPhone using the clear plastic pull tab.

  • When removing the battery with the plastic pull tab you need to be very careful. On some devices, Apple tends to use too much glue, making it almost impossible to remove the battery in this way (tab might break due to excessive force).

  • You could use the iPod opening tool for batteries that won't move, however you need to take extra care while doing so.

  • We suggest you to try to take the battery out from the right-hand side because no glue is used on this side.

  • Remove the battery.

  • Prior to reconnecting the battery connector, check if the pressure contact (marked red) is positioned next to the battery connector in the right way.

  • Before reassembly, use de-greaser (96% ethanol alcohol can also be used, but contacts must be completely dry when done) in order to clean all metal-to-metal contact points on the pressure contact as well as its contact point on the rear panel. The natural oils on your fingers may cause wireless interference issues.

thumb image 1
thumb image 2

Step 7 - Logic Board
Back to top

  • Eject the SIM card and its holder using a SIM card eject tool (paperclip will do as well).

  • You might need a significant amount of force to do this.

  • Remove the SIM card and its holder.

thumb image 1
thumb image 2

Step 8

  • Following screws need to be removed:

  • One 1.2 mm Phillips

  • One 1.6 mm Phillips

  • Now the thin steel dock connector cable cover should be removed from the iPhone.

  • Before reassembly, use a de-greaser to clean all metal-to-metal contact points on the dock connector cable cover. Wireless interference issues might be accidentally caused by the natural oils on your fingers.

thumb image 1
thumb image 2

Step 9

  • Carefully pry the dock cable connector up off the logic board from both short ends of the connector using an iPod opening tool.

thumb image 1
thumb image 2

Step 10

  • Peel the dock ribbon cable slowly off the logic board and the lower speaker enclosure.

  • You must not use excessive force to peel the dock ribbon cable off the logic board, because you might tear the cable.

Step 11

  • Pry the lower antenna connector up off its socket on the logic board using an iPod opening tool.

Step 12

  • 1.9 mm Phillips screw securing the bottom of the logic board to the inner case should now be removed.

Step 13

  • Five screws securing the Wi-Fi antenna to the logic board need to be removed:

  • One 2.3 mm Phillips

  • Two 1.6 mm Phillips

  • One 1.4 mm Phillips

  • One 4.8 mm Phillips

  • It is advisable to start off with replacing the 4.8 mm Philips screw first when re-assembling, then the 2.3 mm. This is to ensure there is no mix-up, and avoid rendering the LCD and digitizer useless.

  • When reassembling, make sure to put the long 4.8 mm Philips back in correctly. This is the ground for the Wi-Fi antenna and is often the reason for sometimes having bad Wi-Fi reception after reassembly.

thumb image 1
thumb image 2
thumb image 3

Step 14

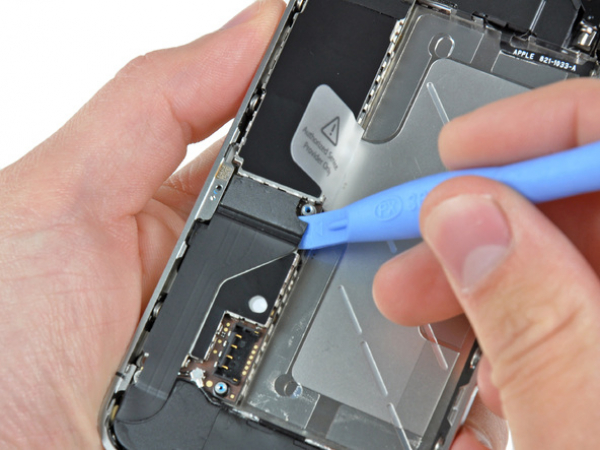

  • Carefully lift the top edge of the Wi-Fi antenna away from the logic board using an iPod opening tool.

  • Pull the Wi-Fi retaining clips away from the inner frame using the tip of a spudger.

  • Remove the Wi-Fi antenna from the iPhone. Be careful not to lose the metal clips on the top of the cover where the 4.8mm screw attaches or the 4.8mm screw. Abnormal Wi-Fi performance after the reassembly may happen because of this.

  • Use a de-greaser to clean all metal-to-metal contact points on the connector cover before reassembly. Wireless interference issues may be caused by natural oils on your fingers. De-greaser should not be used for cleaning the connectors themselves!

thumb image 1
thumb image 2

Step 15

  • Slowly lift the rear camera connector up off its socket on the logic board using an iPod opening tool.

  • Remove the rear camera.

thumb image 1
thumb image 2

Step 16

  • Remove the small circular white sticker (warranty sticker and water indicator) covering the screw near the battery pull tab.

  • Hiding underneath the sticker is 2.4 mm Phillips screw, so remove it.

Step 17

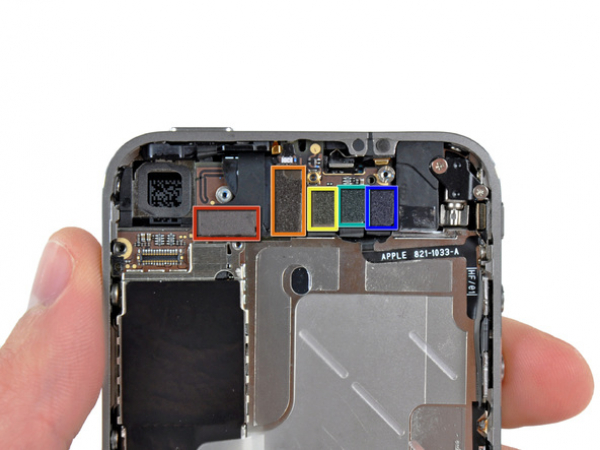

  • Carefully pry these connectors up and out of their sockets on the logic board using the edge of a plastic opening tool:

  • Digitizer cable (pry from bottom)

  • LCD cable (pry from bottom)

  • Headphone jack/volume button cable (pry from top)

  • Top Microphone/sleep button cable (pry from top)

  • Front camera cable (pry from top)

Step 18

  • Remove the 4.8 mm standoff near the headphone jack using a small flathead screwdriver.

  • This standoff sets the height of the Wi-Fi shield removed in step 13, which you will notice while reassembling the device. If not torqued down, the shield will be above the plane of the frame and the back will not slide into place in step 2. The shield should be flush with the headphone jack.

  • When reassembling the motherboard, ensure that its edge sits under the circled standoff, otherwise the screws will not fit.

  • Make sure that the small rubber spacer attached to the top of the motherboard is in place during the reassemble. The motherboard could damage the ribbon cables around it without this part.

Step 19

  • Taking care of the cables that may get caught, slowly remove the logic board from the iPhone.

  • The small gold prong (marked in red, near the top) is very fragile, so make sure not to damage it.

Step 20 - Speaker Enclosure Assembly
Back to top

  • Remove the single 2.4 mm Phillips screw securing the speaker enclosure to the side of the inner frame.

thumb image 1
thumb image 2

Step 21

  • Remove the speaker enclosure from the iPhone.

  • Prior to re-fastening the speaker enclosure to the inner frame, make sure that the four small EMI fingers rest below the lip of the LCD frame.

  • Prior to reassembly, use a de-greaser to clean all metal-to-metal contact points between the EMI fingers and the internal frame as well as the brass screw mounting point. Wireless interference issues may be caused by natural oils on your fingers.

thumb image 1
thumb image 2

Step 22 - Display Assembly
Back to top

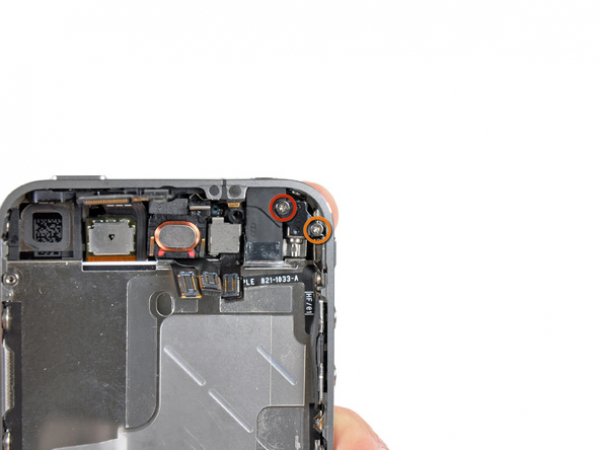

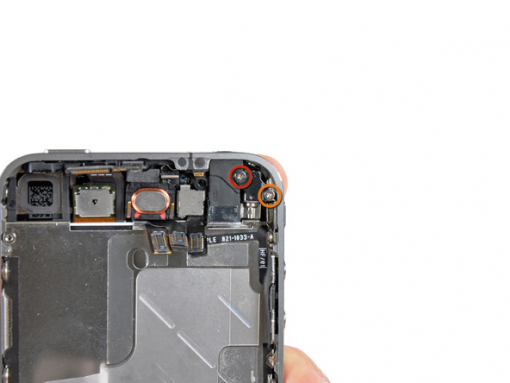

  • These two screws securing the vibrator to the inner frame should now be removed:

  • One 6 mm Phillips

  • One 1.4 mm Phillips

  • Remove the vibrator from the iPhone.

Step 23

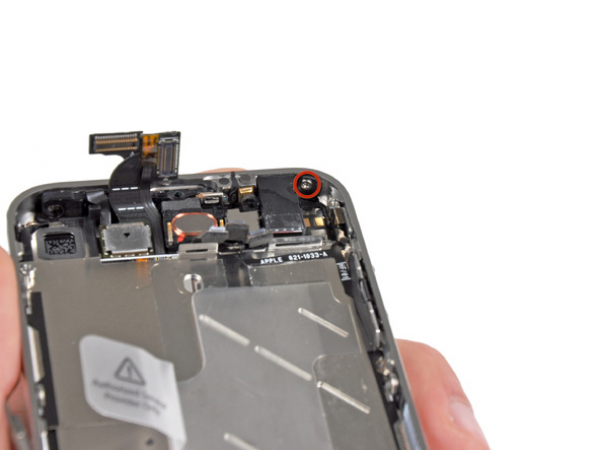

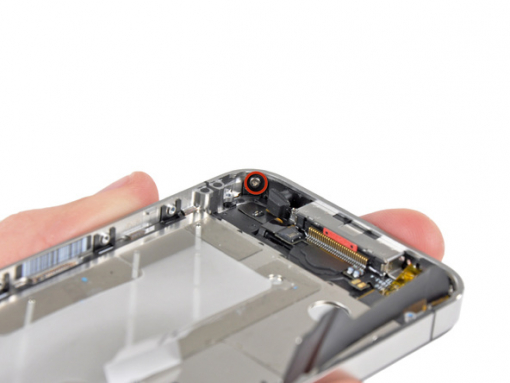

  • 1.5 mm Phillips screw securing the front panel near the headphone jack should be removed.

Step 24

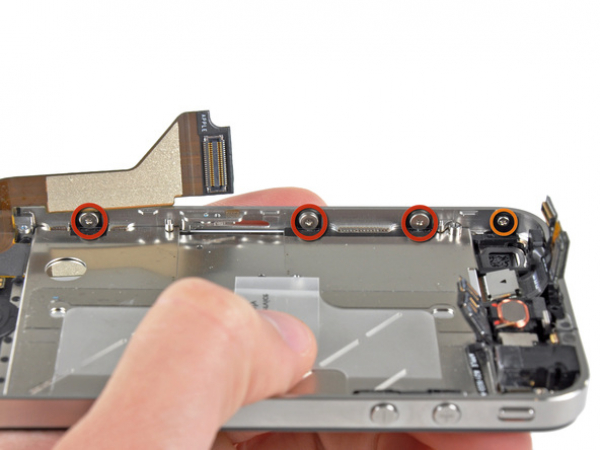

  • It is time to remove three large-headed 1.5 mm Phillips screws along the volume button side of the iPhone.

  • Keep track of the washers under each of the screws.

  • Tip: It can be a bit difficult, but it is also possible to just loosen a bit the large-headed 1.5 mm Phillips screws, without actually having to remove and replace the screw-and-washer set.

Step 25

  • Remove the 1.5 mm Phillips screw near the lower microphone.

Step 26

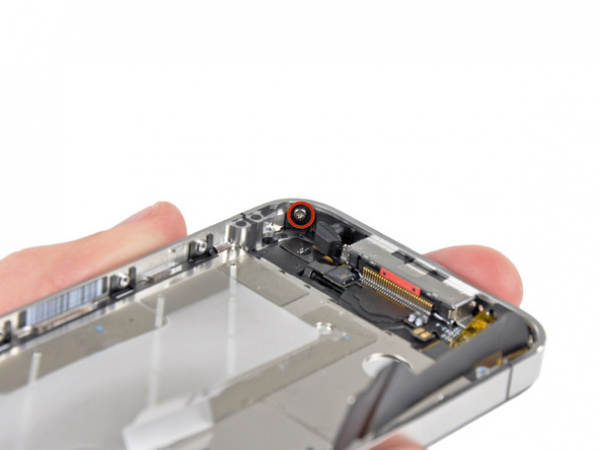

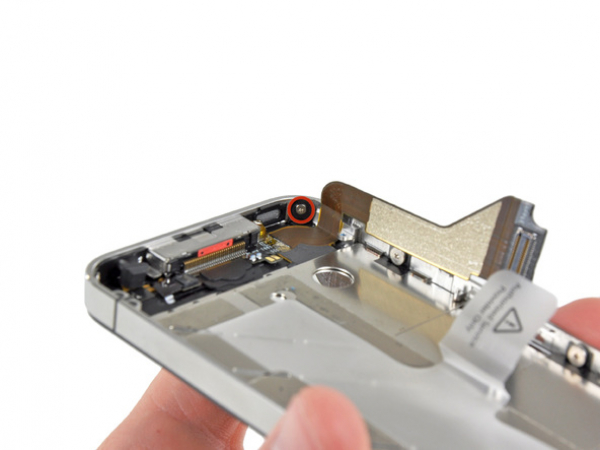

  • Remove the 1.5 mm Phillips screw near the dock connector ribbon cable.

Step 27

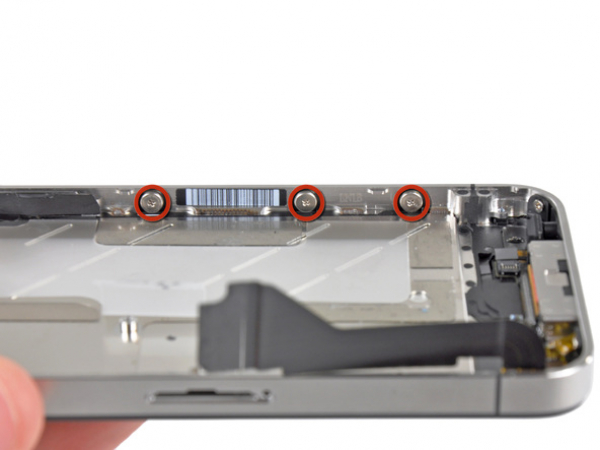

  • Remove the three large-headed 1.5 mm Phillips screws along the SIM card side of the iPhone.

  • Keep track of the washers under each of the screws.

  • Tip: It can be a bit difficult, but it is also possible to just loosen a bit the large-headed 1.5 mm Phillips screws, without actually having to remove and replace the screw-and-washer set.

  • Remove the small-headed 1.5 mm Phillips screw near the sleep button.

thumb image 1
thumb image 2

Step 28

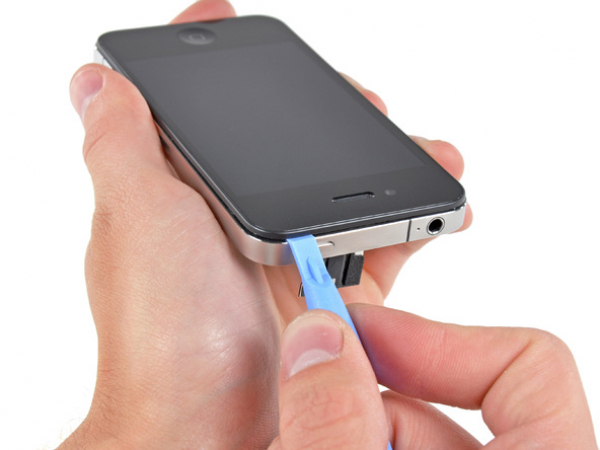

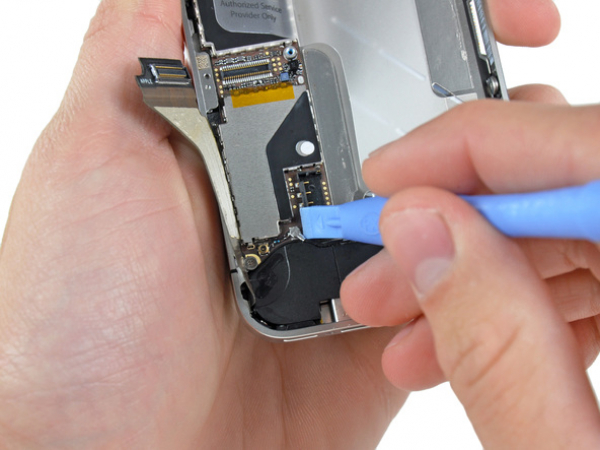

  • The edge of an iPod opening tool should be carefully inserted between the rubber bezel around the front glass panel and the steel inner frame.

  • The tool should not be inserted between the glass and the rubber bezel.

  • Carefully pry the upper edge of the front panel assembly away from the steel inner frame.

thumb image 1
thumb image 2

Step 29

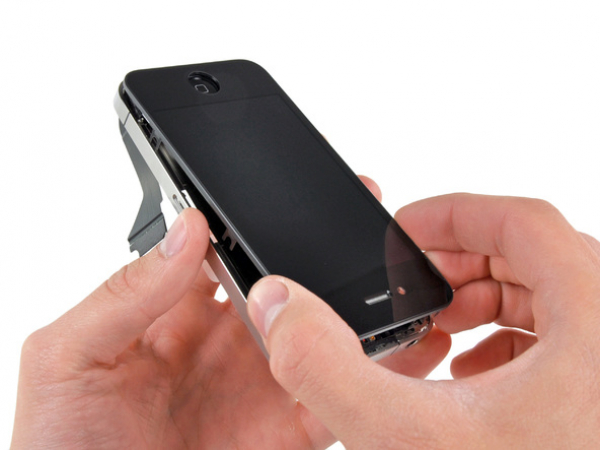

  • Carefully and slowly lift the top edge of the front panel assembly away from the steel inner frame.

  • Continue to rotate the front panel assembly away from the steel inner frame until it slowly begins to peel off the adhesive applied below the home button area.

  • Faster solution is to insert a spudger at the top and work it around the edges, spreading gently as you go.

  • Carefully pull the lower edge of the front panel assembly away from the steel inner frame.

  • If the home button sticks to the front panel you may tear the home button cable, so be very careful!

  • Make sure not to flip the front glass completely away from the frame, because by doing so you may damage the digitizer cable.

thumb image 1
thumb image 2

Step 30

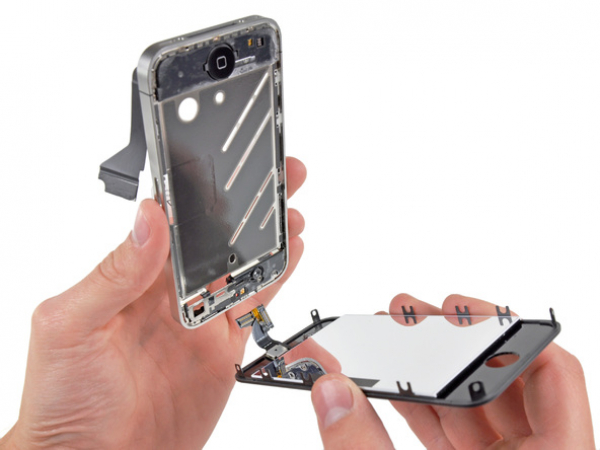

  • De-route the digitizer and LCD cables through the steel inner frame.

  • Prior to re-fastening the front panel to the steel inner frame, make sure that both the LCD and digitizer cables are not folded or pinched between the inner frame and the front panel assembly. This may cause damage to the cables and you may not have enough slack when reconnecting them to the logic board.

  • After the correct installation of the front panel, both the LCD and digitizer cables should be immediately next to one another and should be the same length and should be just hanging over the steel frame.

  • During the replacement of the front panel assembly, bear in mind that you might have to reuse the earpiece grille and the clear plastic ring around the front facing camera from the old/damaged assembly. This will depend on where you buy the replacement part.

  • We advise you to protect your new display from any scratches by applying a new screen protector after reassembly.

  • Your replacement display may come with a red plastic film on the back of the LCD.

  • If it does, use the pull tab near the home button to peel the plastic film from the LCD before installing the new display in your iPhone.
