iPhone 4 Back Panel Replacement

Send this link via e-mail


thumb image 1
thumb image 2

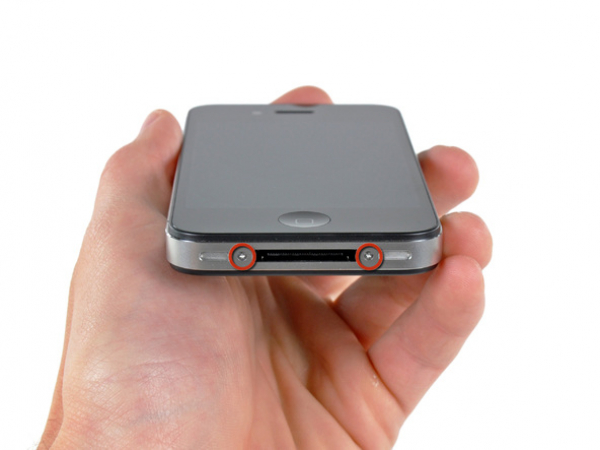

Step 1 - Rear Panel

  • Back panel on your iPhone 4 has either two #000 Phillips screws or Apple's 5-Point "Pentalobe" screws. Make sure to check which screws are used; also make sure that you have the appropriate screwdriver in order to remove them.

  • Remove the two 3.6 mm Pentalobe or Phillips #000 screws next to the dock connector.

  • While reassembling the phone, we suggest you to replace the 5-point screws with equivalent Phillips screws. We have all the necessary tools and screws needed to replace the Pentalobe screws with Phillips screws.

thumb image 1
thumb image 2

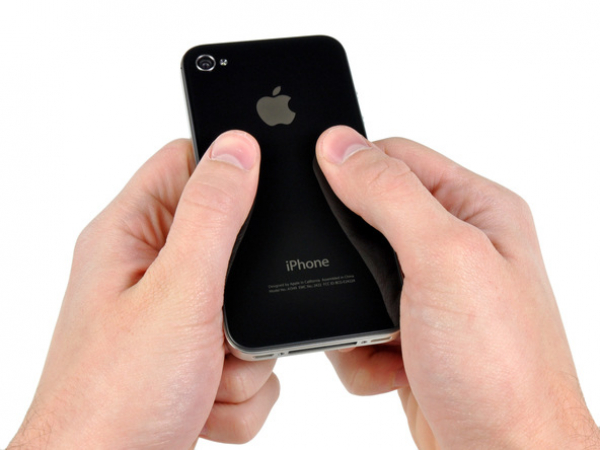

Step 2

  • Force the rear panel toward the top edge of the iPhone.

  • The panel will move about 2 mm.

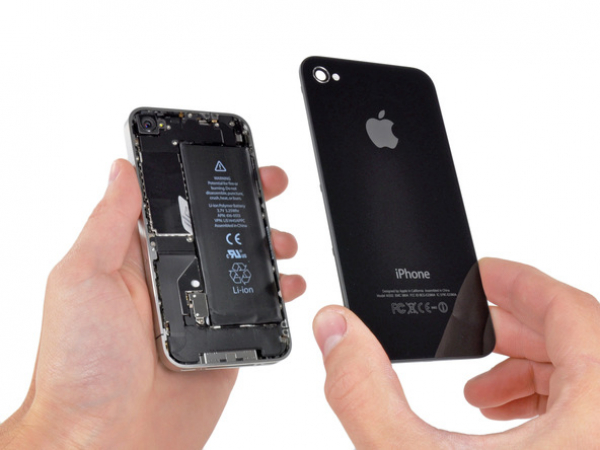

Step 3

  • Squeeze the rear panel with your fingers and lift it away from the iPhone.
