iPhone 11 Pro Screen Replacement

Send this link via e-mail


Step 1 - Before You Start

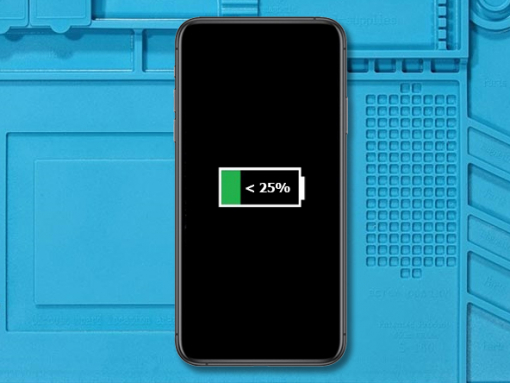

  • Before you start with the repair, the battery should be discharged below 25%.

  • Power off your iPhone before beginning disassembly.


  • Caution:

  • If the battery is swollen, take adequate measures and precautions.

  • Do not heat your phone. You can use isopropyl alcohol around the edges of the back cover to weaken the adhesive.

  • Wear eye and hand protection when working with swollen batteries.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9
thumb image 10
thumb image 11

Step 2 - Opening Procedure
Back to top

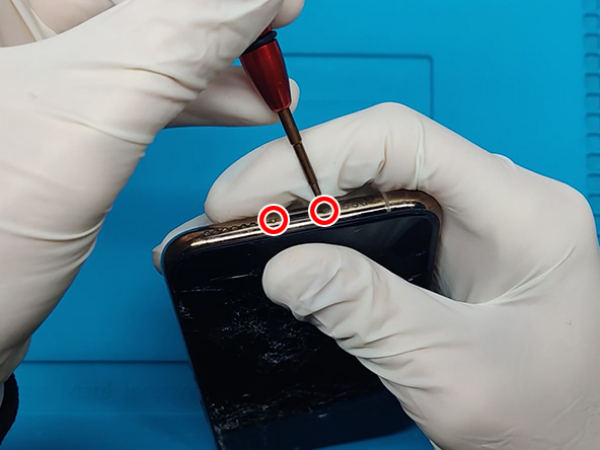

  • Remove two 6.7mm pentalobe screws found at the bottom of your iPhone.

  • Slide the spudger into the edges of the iPhone starting from the bottom.

  • Increase the gap between the display and back case by twisting the spurger.

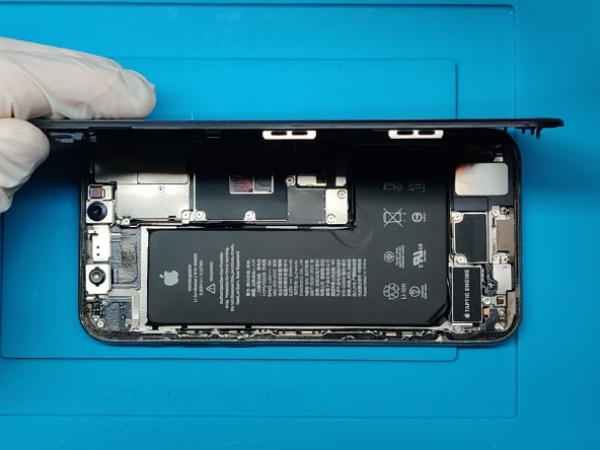

  • Swing the display up from the left to open the device, like a book's back cover.

  • Do not detach the display yet, since a few fragile ribbon cables connect it to the iPhone's mother board.

  • Tip:

  • If the glass of the display is cracked, prevent further tear by taping the glass over it.

  • Stick overlapping strips of transparent packing tape over the entire iPhone's display.

  • This keeps glass shards together and provide the integral structure while you pry and lift the display

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9
thumb image 10
thumb image 11
thumb image 12
thumb image 13

Step 3 - Disconnect The Battery & LCD Display I
Back to top

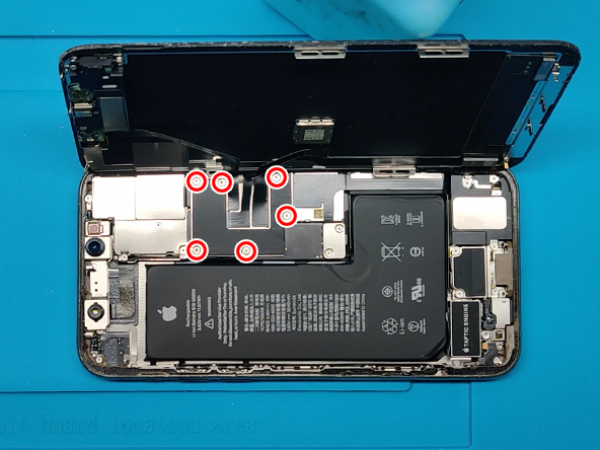

  • With a Y000 screwdriver, remove six 1.3 mm screws securing the logic board cover bracket

  • Remove the bracket.

  • Remove two 1.3 mm Y000 screws securing the battery connector bracket.

  • Remove the bracket.

  • Lift the battery connector up from the socket with a spudger or a fingernail.

  • Disconnect the cable connector of the OLED panel.

  • Disconnect the cable connector of the front sensor assembly.

  • Lift the display assembly.

thumb image 1
thumb image 2
thumb image 3

Step 4 - Sensor Assembly & The Earpiece I
Back to top

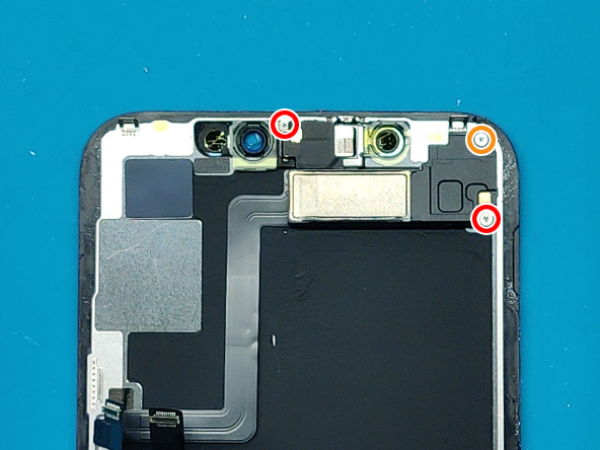

  • Remove the screws which secure the sensor assembly & speaker to the back of the display:

  • 2x 1.3mm Y000 screws

  • 1x 1.9mm Y000 screw

  • Use a spudger to pry carefully under the upper edge of the assembly, and flip it - down and away from the display's edge

  • Flip the speaker assembly over away from the top of the display.

thumb image 1
thumb image 2
thumb image 3

Step 5 - Sensor Assembly & The Earpiece II
Back to top

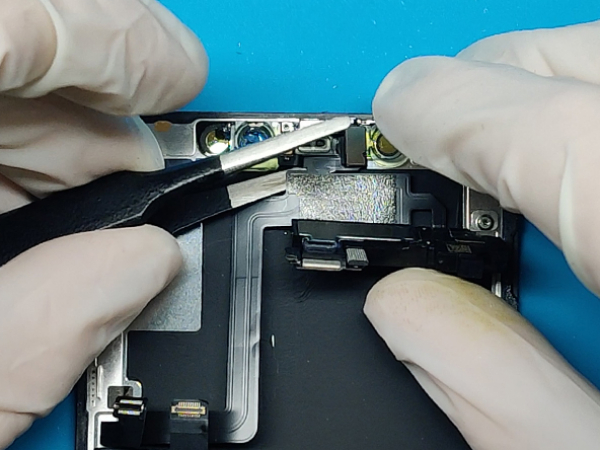

  • Separate the microphone and the notch in the panel by lifting it with tweezers or a spudger.

  • Remove the ambient light sensor out of its notch in the display.

  • Note:

  • If the ambient sensor came out with the white diffuser strip, separate it from the strip with a blade or pry tool.

  • Caution:

  • The ambient sensor is connected with the rest of the sensor assembly with a thin flex cable. Do not damage this cable.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9
thumb image 10
thumb image 11

Step 6 - Transferring The Sensor/Earpiece Assembly
Back to top

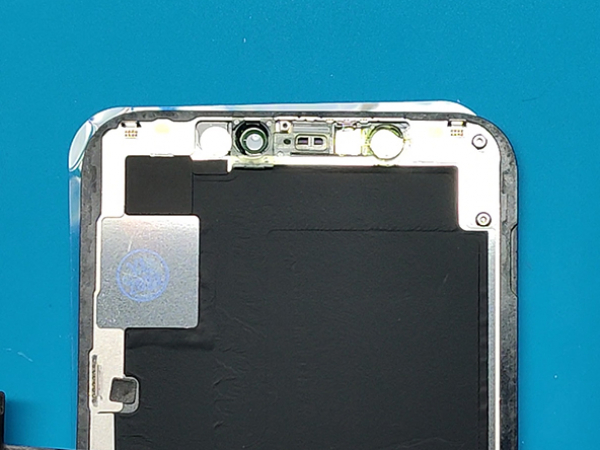

  • Install the sensor assembly and the earpiece into the new display panel.

  • Secure it with 3 Y000 screws.

  • Connect the cable connector of the OLED panel with the logic board.

  • Connect the front sensor assembly cable connector with the logic board.

  • Install the metal bracket and secure it with six 1.3 mm Y000 screws .

  • Reconnect the battery connector and install the metal bracket.

  • Secure it with two 1.3 mm Y000 screws.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6

Step 7 - Finish The Repair
Back to top

  • Set the display down on top of the phone assembly.

  • Starting from the top press around the edges of the display until all the hinges are in place.

  • Fasten two bottom screws near the charging port.

  • And you can now power on your phone.
