iPad 4 Wi-Fi Lightning Connector Replacement

Send this link via e-mail


thumb image 1
thumb image 2

Step 1 - Front Panel Assembly (2)

  • If there's a piece of electrical tape covering the Wi-Fi antenna, speaker cable and the home button ribbon cable, remove it.

thumb image 1
thumb image 2

Step 2

  • Lift up the flap retaining the home button ribbon cable ZIF connector.

thumb image 1
thumb image 2

Step 3

  • Pull the home button ribbon cable out of its socket on the logic board. Do this with a pair of tweezers.

Step 4

  • De-route the home button ribbon cable from its niche in the rear case.

Step 5

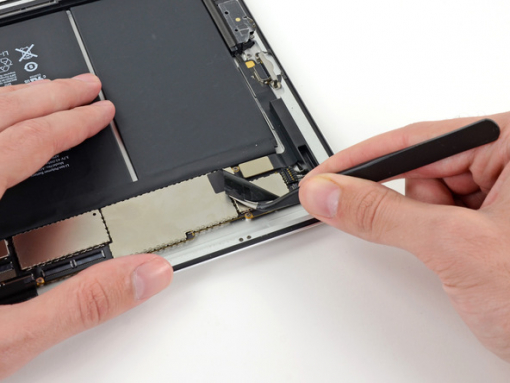

  • A piece of tape is securing the digitizer ribbon cable to the logic board. Peel it back with a pair of tweezers.

thumb image 1
thumb image 2
thumb image 3

Step 6

  • Lift up the retaining flap on both digitizer ribbon cable ZIF connectors.

thumb image 1
thumb image 2

Step 7

  • Loosen the adhesive under the digitizer ribbon cable with the flat end of a spudger.

  • Take out the digitizer ribbon cable out of its sockets on the logic board.

thumb image 1
thumb image 2

Step 8

  • Peel back the digitizer ribbon cable. Separate the cable from the adhesive securing it to the rear aluminum case with the flat end of a spudger.

Step 9

  • Take the digitizer ribbon cable out of its niche in the aluminum frame. Do this with your fingers.

  • Separate the front panel from the iPad.

Step 10 - Electrical Tape
Back to top

  • If there's any electrical tape covering the Lightning connector cable, remove it.

thumb image 1
thumb image 2

Step 11 - Plastic Spacer
Back to top

  • Separate the plastic spacer from the rear case with the flat end of a spudger.

  • Take the plastic spacer off of your iPad.

Step 12 - Lightning Connector
Back to top

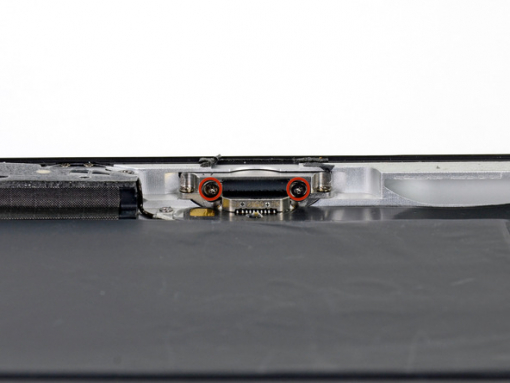

  • Two 2.9 mm Phillips screws are securing the Lightning connector to the rear case. You need to remove them.

thumb image 1
thumb image 2

Step 13

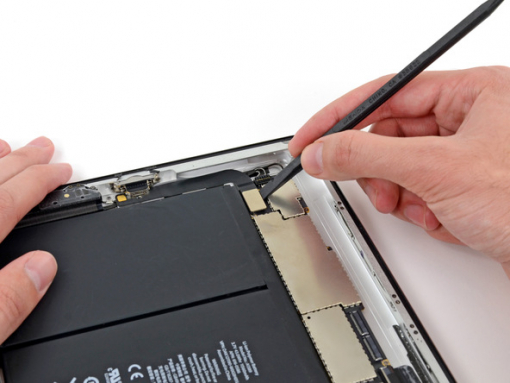

  • Pry the Lightning connector cable out of its socket on the logic board with the flat end of a spudger.

thumb image 1
thumb image 2

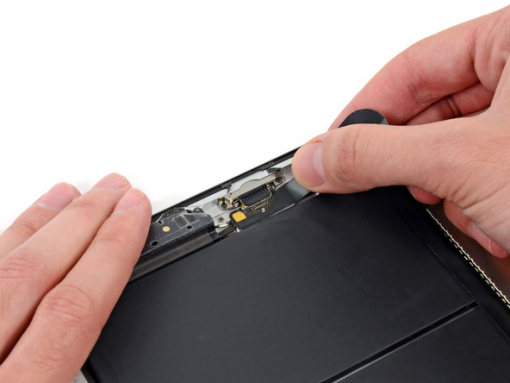

Step 14

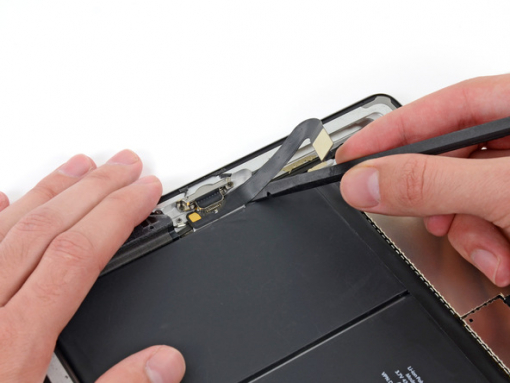

  • Lift the Lightning connector cable from the aluminum frame using the flat end of a spudger.

thumb image 1
thumb image 2

Step 15

  • Take the Lightning connector out of its niche in the rear case.
