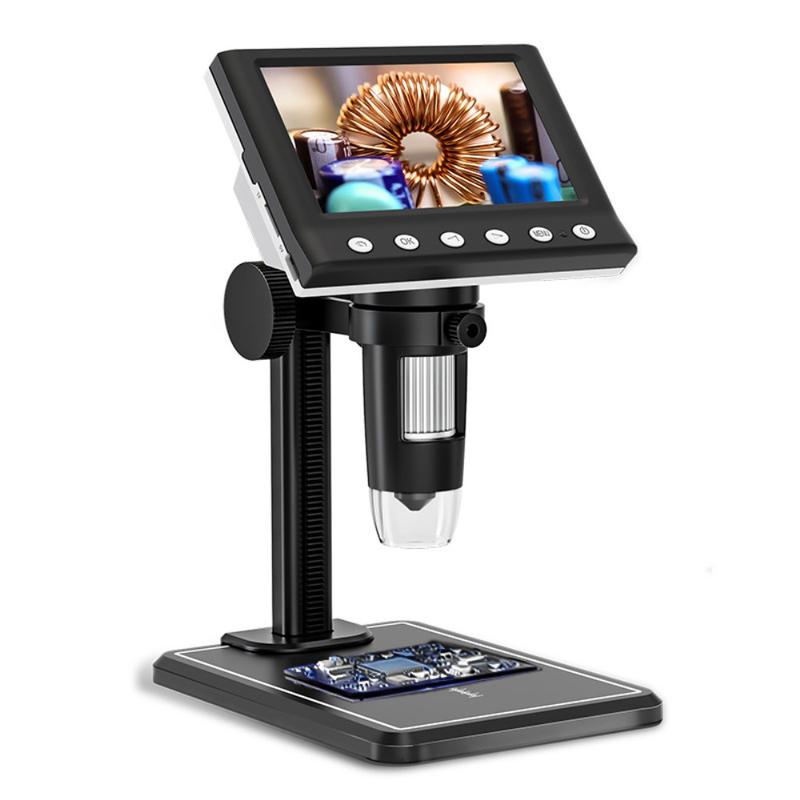

DM7D-B1 4.3" Digital Microscope 1080P - 500x-1000x Magnification, 8 LED Lights, USB-C PC Connection
Inspect circuit boards, electronic components, jewellery, coins, and other small objects with the DM7D-B1 digital microscope. Its 4.3" IPS display provides real-time viewing, while up to 1000x digital magnification and manual focus help reveal fine details during repair, inspection, and hobby work.
The microscope also supports 1080P video recording, photo capture, adjustable LED lighting, and USB-C connection to compatible computers.
Key Features and Specifications

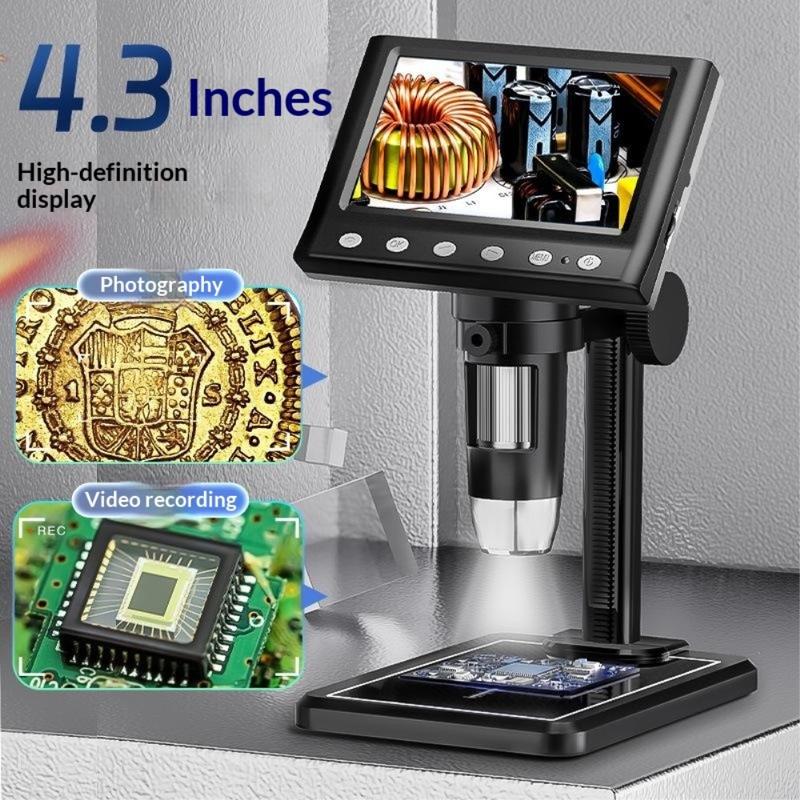

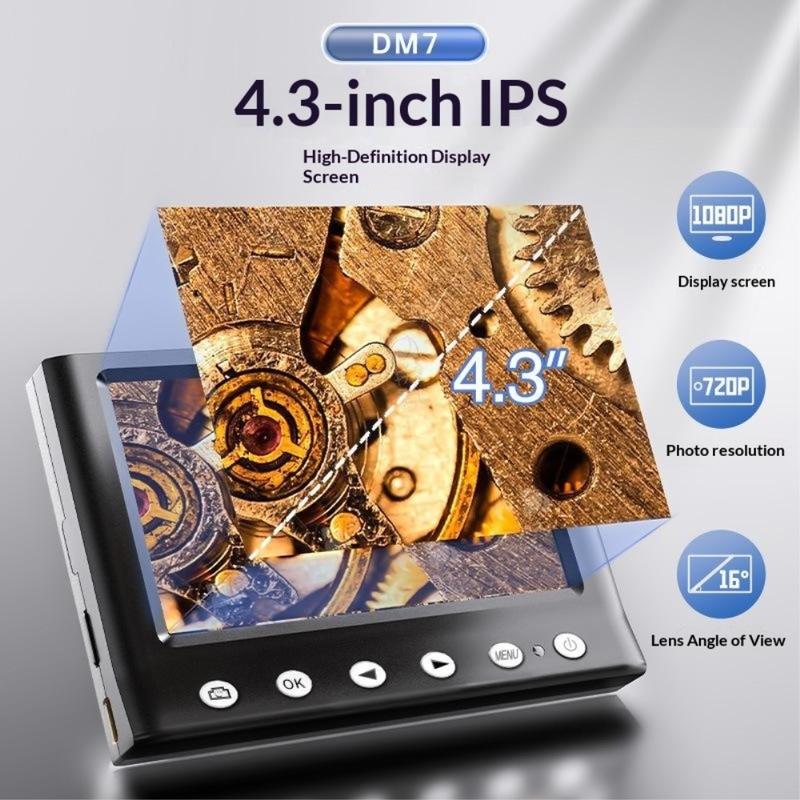

- 4.3" IPS display
- Screen resolution: 480 x 272
- Digital magnification: 500x-1000x

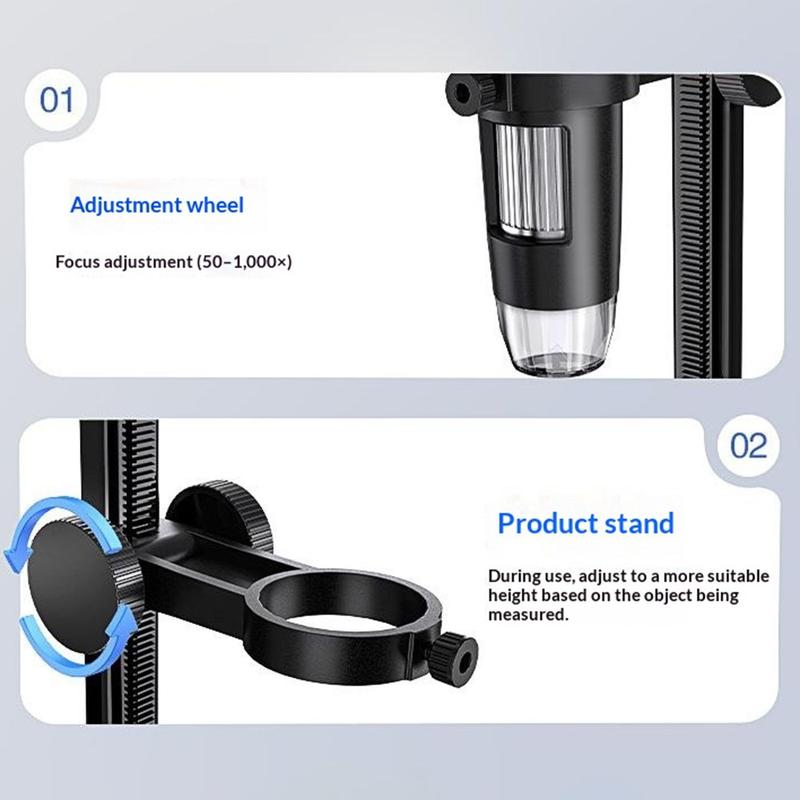

- Manual focus range: 10-40 mm
- Photo resolution up to 1920 x 1080
- Video resolution up to 1080P

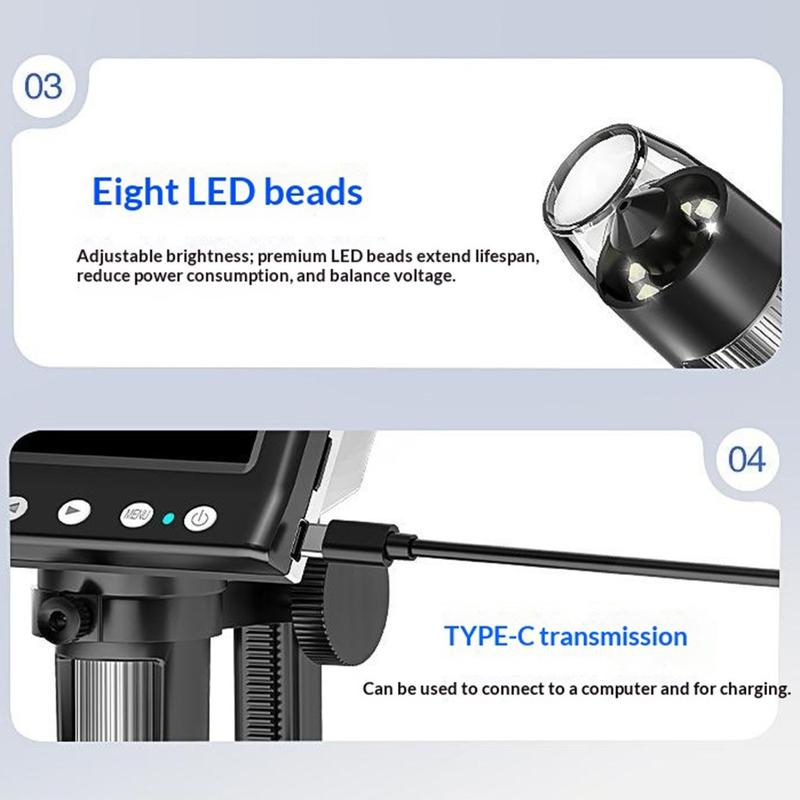

- 8 adjustable LED lights
- Automatic white balance and exposure

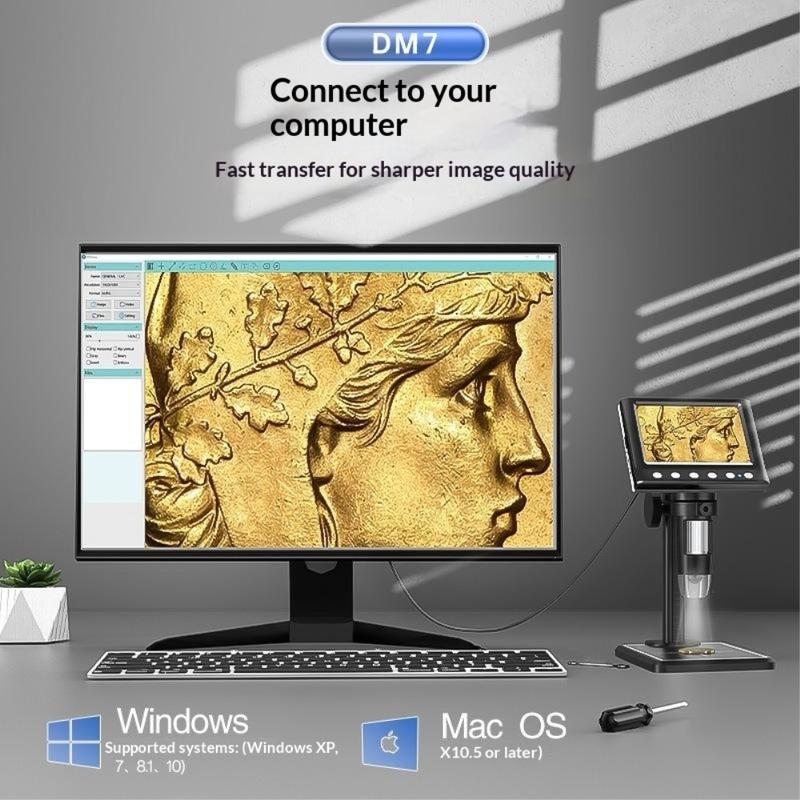

- USB-C computer connection
- Can function as a computer camera
- Built-in 1800mAh battery
- Power consumption: 2.1W
- Video format: AVI
- Image format: JPG
- Operating temperature: -20 C to 60 C
- Compatible with Windows XP/7/8.1/10 and Mac OS X 10.5+
Ideal Usage
Ideal for mobile phone repair, PCB inspection, soldering work, electronics servicing, jewellery examination, coin collecting, model building, and detailed hobby projects.
Why Buy This Product
The DM7D-B1 combines a standalone display, high magnification, recording functions, adjustable lighting, and PC connectivity in one practical inspection tool.
Interesting Facts
Digital microscopes are especially useful for electronics work because the image is displayed on a screen rather than through an eyepiece. This can make longer inspection and soldering sessions more comfortable and allows photos or videos to be saved for documentation.
Package Includes
- 1 x Digital microscope
- 1 x Stand
- 1 x USB cable
- 1 x Software installation disc
- 1 x English user manual
Packing: Euroblister
EAN: 5714122674715
-
